How to dispose the outdoor light connector correctly?
Precaution of water prevention and moisture to enter the lamp through power cable IP65 / IP66 / IP68. According to the research and test. The water infiltration is one of the biggest damage to the outdoors fixture. The bellowing pictures are those typical circumstances will take place:
Why use the water-proof connector??
When the fixture is turned on, the inside temperature will increase as the operating time goes. Conversely when the lamp stops working, the temperature will the temperature will slowly drop. This phenomenon will cause “The Siphon effect”. Thermal expansion and contraction makes theinside and outside air pressure differences. The vapor will infiltrate to the housing through the wire entry as soon as the internal air pressure is smaller than the external. The infiltration is caused by several incorrect connections like the picture below:
The best and easiest ways to prevent the water filtration are by isolating directly

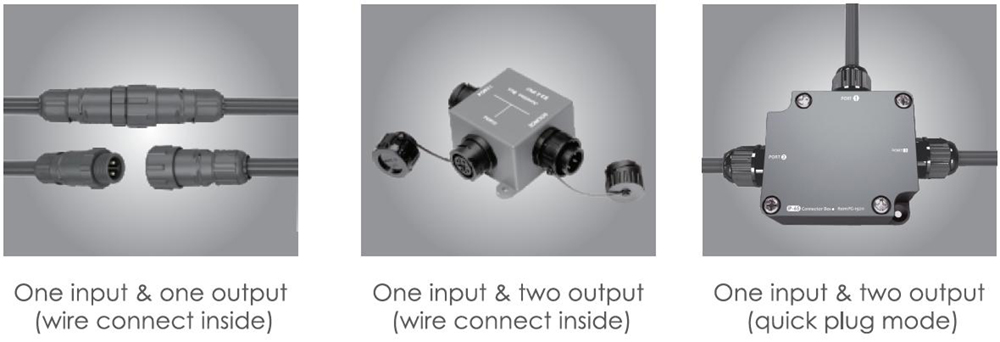

We recommend using the water-proof connector like Thefollowing pictures. The connector was developed especially for outdoors lightings to make sure the fixture is protected.

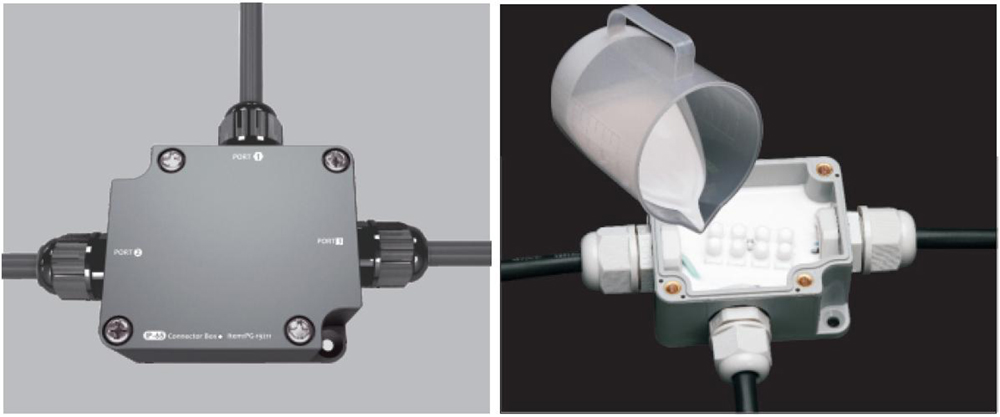

Connection box:
Specifications:
| Housing |
Flame resistant PC+fiber (Fire resistance
PC fire resistance V-0) |
| Cable gland |
Port 1: IP68 PG-9 for connecting luminaire
Port 2 & Port 3: IP68 PG-11 for power input and power output to the next connector box
Port 2 and Port 3 are non-directional |
| Block termial |
4 pins inside |
| Waterproof rate |
IP65 |
| Cable outside-dimension |
Max 10mm |
| Outer dimension |
118×84×35mm |
Connection demo:
1. Open-end wire connection as the illistration above
2. Please choose the appropriate main cable for the total power to be applied.
3. Installers should prepare the main cables and waterproof connectors, or buy from LED X-LIGHT.
4. Please take reference as fixtures' specs for its working current.
