Uplight, Đèn âm đất mini, đèn âm đất góc chiếu thẳng, đèn âm đất góc chiếu đứng, up beam type inground light, mini led inground light

SKU: IGLB2YCR0157

Up light Tiny type LED Inground light IGLB2YCR0157

Up light Tiny type LED Inground light IGLB2YCR0157
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Light Window: Tempered frosted step glass.T=5mm
LED: OSRAM
Glass pressure capacity: Full area = 254kgs
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)

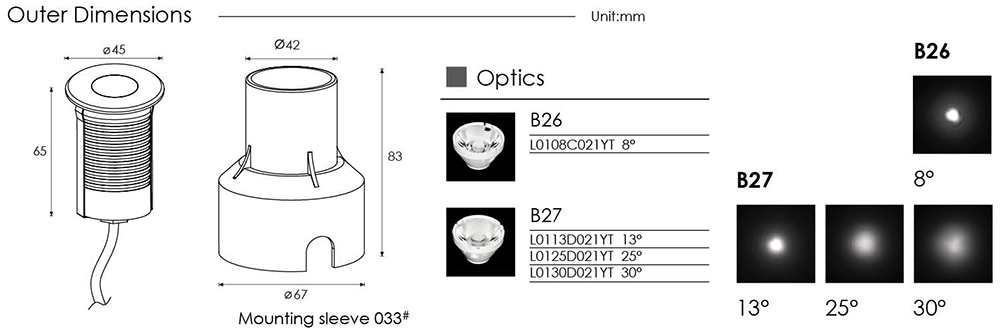

Mounting sleeve: ABS 033#
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLB2YCR0157
Light source	1 x 2.0W OSRAM

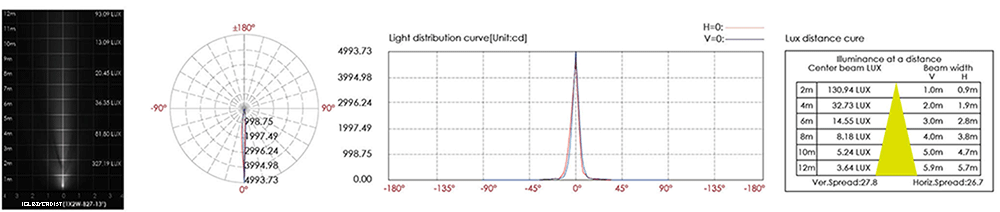

The manufacturer selected lens degree (º) ϴ1/2	8º, 13º, 25º, 30º
Input voltage (V)	24V DC
Typical operating current (mA)	110
Typical consumption (W)	2.5
Typical luminance (lm)	Cool white = 135 Warm white = 120
IP rate	IP67
IK rate	06
