SKU: IGLB2BNR0157 - IGLB2BNS0157

Up beam type mini LED inground light IGLB2BNR0157 - IGLB2BNS0157

Up beam type mini LED inground light IGLB2BNR0157 and IGLB2BNS0157
Color temperature:
2000K
3000K
6000K
Housing: Aluminum anodized finishing or powder painting
Front ring: Hard chromeplated stainless steel SUS 316#
PMMA: T=2mm
Cable gland: IP67 Nickel coated copper
Gasket: Sillicone seal
Lens: Optical lens efficiency ≥ 85%
LED Driver: Constant Current Input
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X0.5mm2 L=0.3m
Mounting sleeve: ABS 104#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP67

Specifications:

Item	IGLB2BNR0157	IGLB2BNS0157
Light source	1 x 2W	1 x 2W

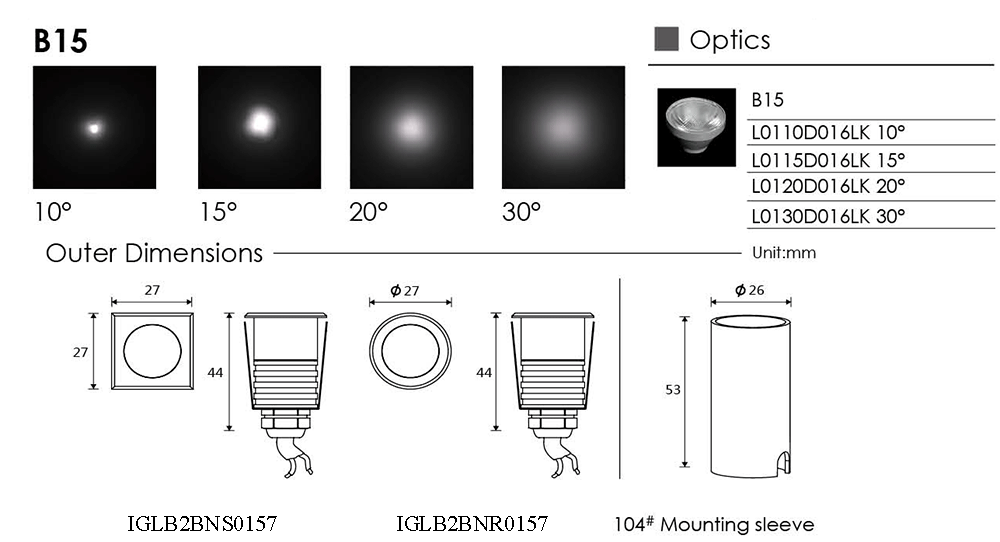

Lens	B15	B15
The manufacturer selected lens degree (º) ϴ1/2	10º, 15º, 20º, 30º	10º, 15º, 20º, 30º
Input voltage (V)	3V DC	3V DC
Typical operating current (mA)	500	500
Typical consumption (W)	1.5	1.5
Typical luminance (lm)	Cool white = 148 Warm white = 135	Cool white = 148 Warm white = 135
IP rate	IP67	IP67
IK rate	02	02
