Uplight, Đèn âm đất mini, đèn âm đất góc chiếu thẳng, đèn âm đất góc chiếu đứng, up beam type inground light, mini led inground light

SKU: IGLD2YBR0134 - IGLD2YBS0134

Diffuser Tiny type LED inground light IGLD2YBR0134 - IGLD2YBS0134

Diffuser Tiny type LED inground light IGLD2YBR0134 and IGLD2YBS0134
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Light Window: Tempered frosted step glass.T=5mm
LED: OSRAM or NICHIA
Glass pressure capacity: Full area = 254kgs
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
Mounting sleeve: ABS 032#
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLD2YBR0134	IGLD2YBS0134
Light source	1 x 0.5W NICHIA	1 x 0.5W NICHIA
Input voltage (V)	24V DC	24V DC
Typical operating current (mA)	26	26
Typical consumption (W)	0.6	0.6
Typical luminance (lm)	Cool white = 11.0 Warm white = 9.6	Cool white = 11.0 Warm white = 9.6
IP rate	IP67	IP67
IK rate	06	06

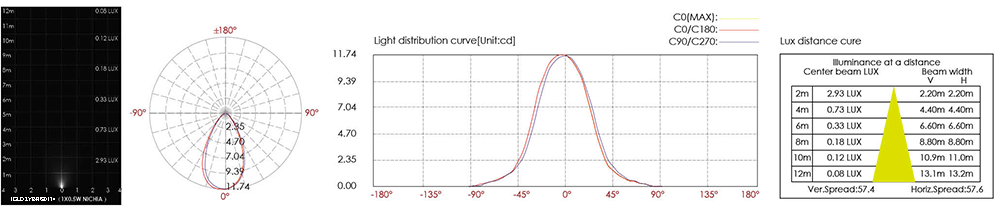

Specification of IGLD2YBR0134 & IGLD2YBS0134

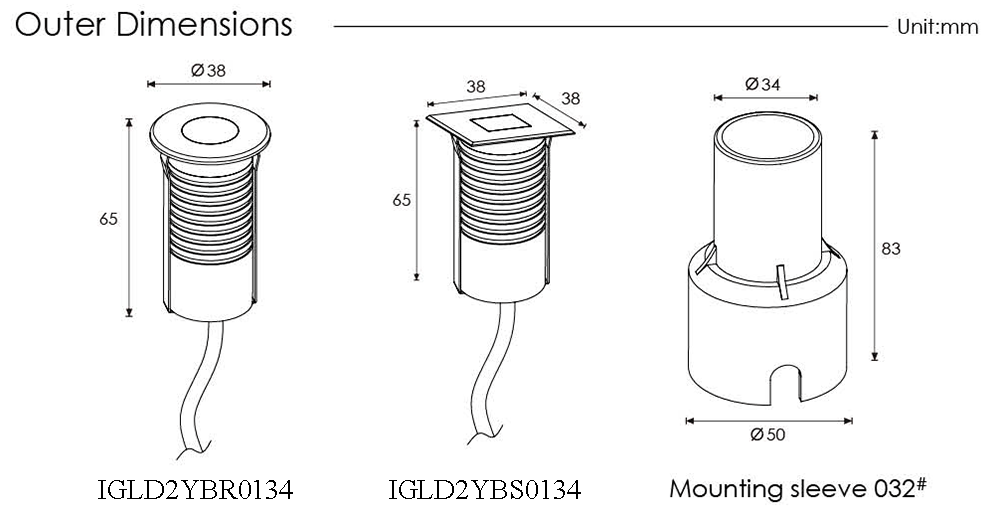

Dimension of IGLD2YBR0134 & IGLD2YBS0134
