Đèn led thanh âm đất hắt tường, đèn âm đất hắt tường đối xứng, recessed linear inground wall washer lamp

SKU: IGLB2FL0657

Symmetrical recessed linear inground wall washer lamp IGLB2FL0657

Symmetrical recessed linear inground wall washer lamp IGLB2FL0657
Color temperature:
    2000K
    3000K
    6000K
Housing: 12# Die-casting dark grey powder coated aluminum T=60-80um
Front cover: Hard chromeplated stainless steel SUS 316L#
Light window: Tempered froshed step glass T = 8mm
Cable gland: IP68 PG-9 PA66
Glass pressure capacity: Full area = 3251kgs
Gasket: Molding shaped silicone seal
PCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0w/mk
LED Driver: Constant Voltage Input, Constant Current Output
LED: OSRAM or NICHIA
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
                      H05RN-F 3X 1.0mm2 L=0.5m (high voltage)

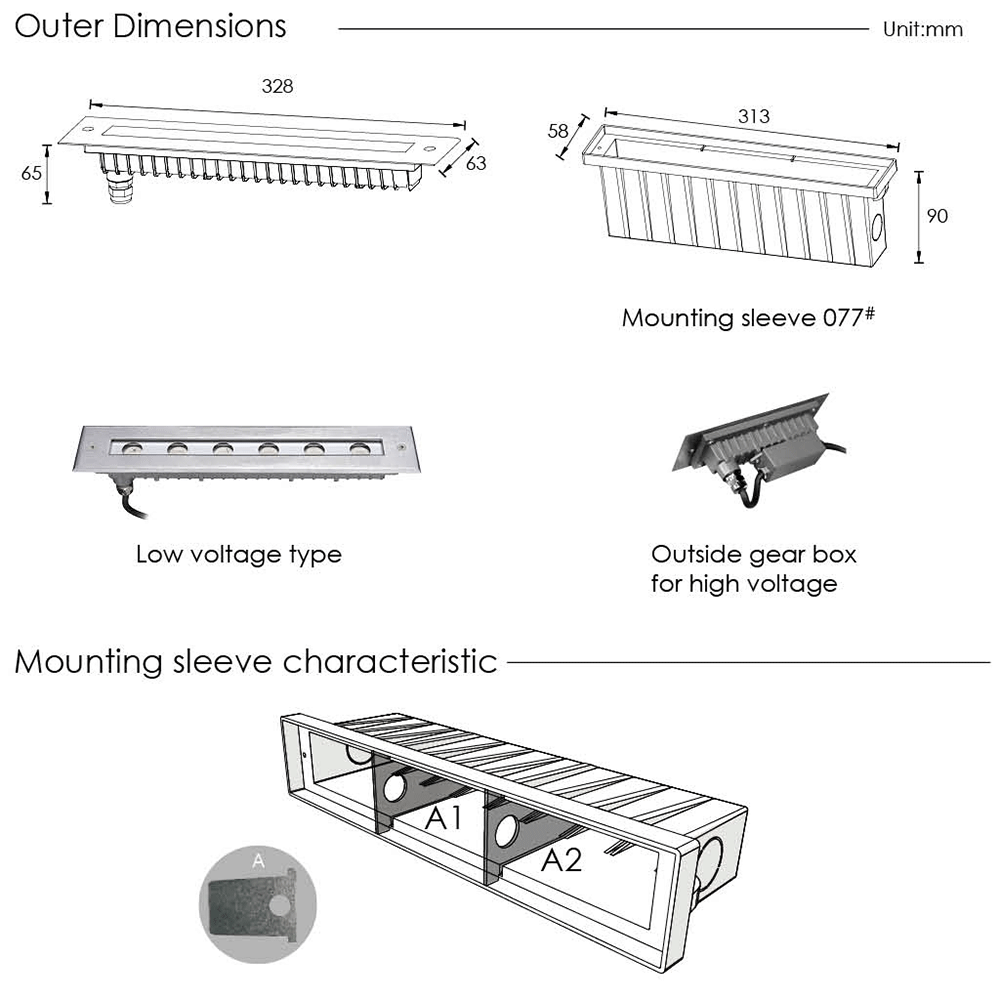

Mounting sleeve: ABS 077#
Dimmable support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLB2FL0657
Light source	6 x 2W

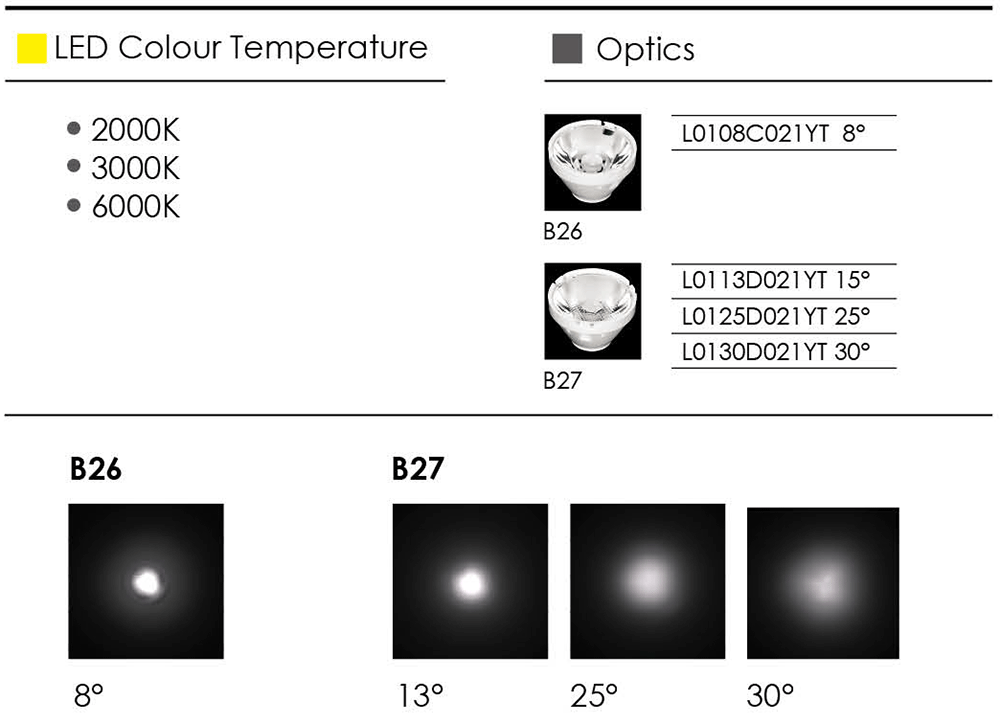

Lens	B26, B27
Length L = (mm)	328 mm

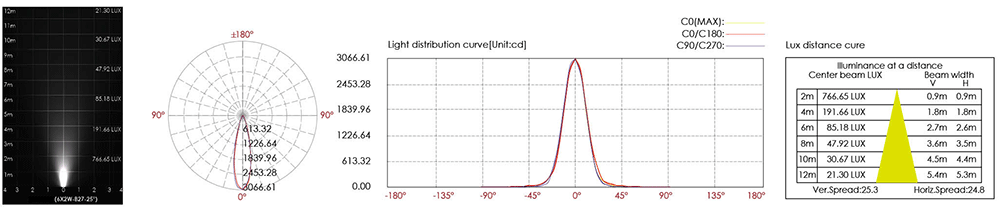

The manufacturer selected lens degree (º) ϴ1/2	8º, 13º, 25º, 30º
Weight (kg)	1.6
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 550 120V = 100 240V = 57
Typical consumption (W)	24V = 13.2 120V = 11.8 240V = 12.1
Typical luminance (lm)	Cool white = 1100 Warm white = 733
IP rate	IP67
IK rate	08
