SKU: IGLC2RLB1257 - IGLC2RLB2457

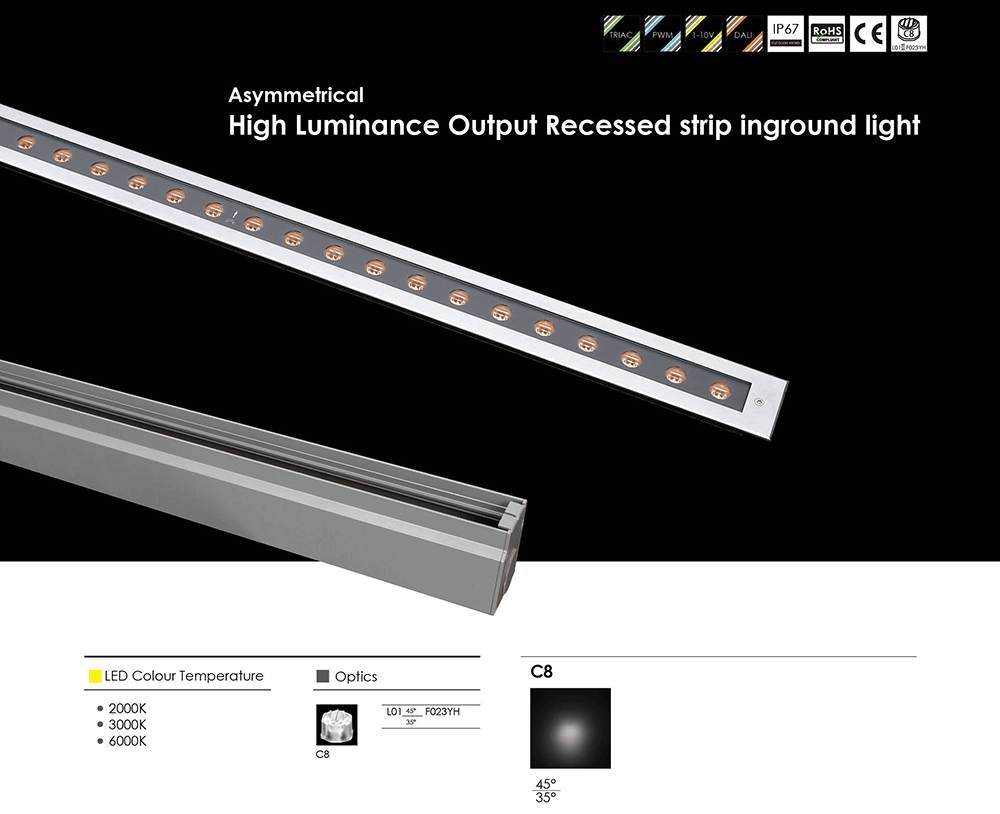

Asymmetrical high luminance output recessed strip inground light IGLC2RLB1257 - IGLC2RLB2457

Asymmetrical high luminance output recessed strip inground light IGLC2RLB1257 - IGLC2RLB2457
Color temperature:
    2000K
    3000K
    6000K
Housing: Extruded aluminum, powder coated
Front cover: Hard chromeplated stainless steel SUS 316L#
Light window: Tempered froshed step glass T = 6mm
Lens: Optical lens efficiency ≥ 85%
Cable gland: IP68 PG-9 PA66
Gasket: Glass and housing are silicone sealed
LED: OSRAM LED
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
                      H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: Powder coated aluminum 137# 138#
Dimmable support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLC2RLB1257	IGLC2RLB2457
Light source	12 x 1.5W Single color	24 x 1.5W Single color
Lens	C8	C8

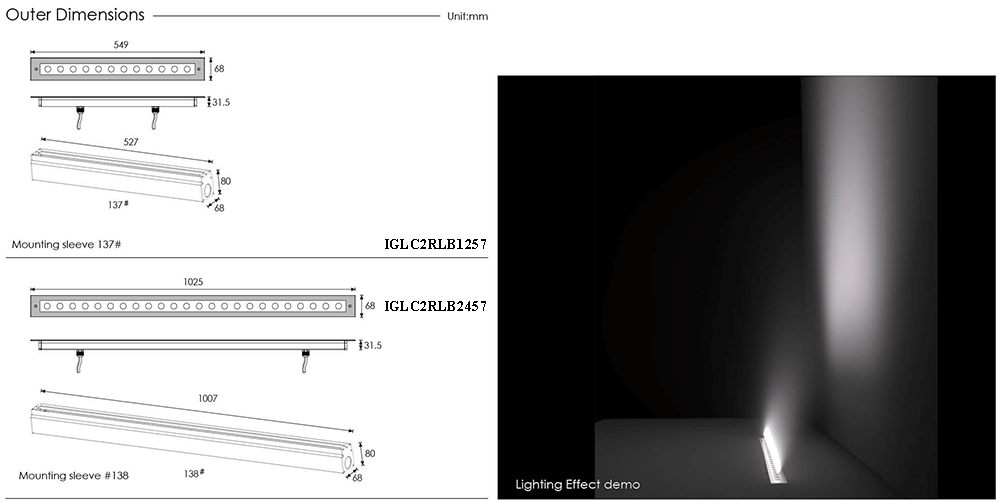

Length L = (mm)	549 mm	1025 mm

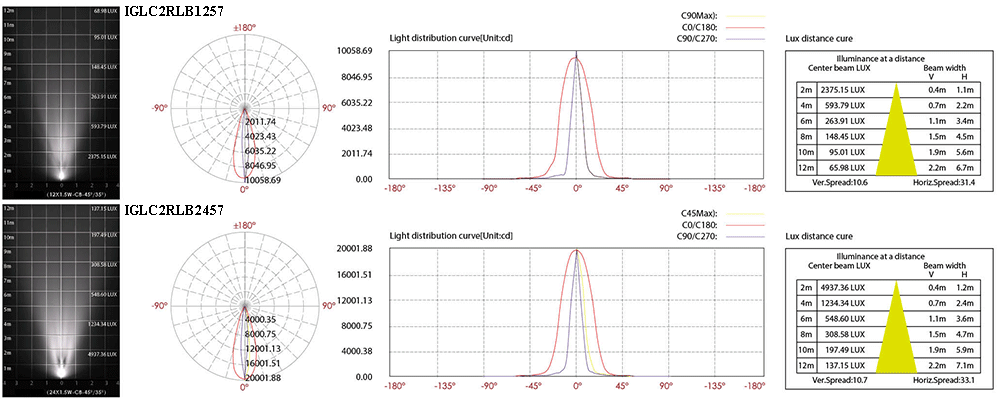

The manufacturer selected lens degree (º) ϴ1/2	45º 35º	45º 35º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 910 120V = 143 240V = 79	24V = 1826 120V = 312 240V = 156
Typical consumption (W)	24V = 22.0 120V = 17.0 240V = 17.5	24V = 44.0 120V = 36.0 240V = 36.4
Typical luminance (lm)	Cool white = 1108 Warm white = 1020	Cool white = 2198 Warm white = 2055
IP rate	IP67	IP67
IK rate	07	07
