Đèn âm đất chiếu sâu, đèn led chiếu sâu âm đất, depth illuminant led inground light, depth inground light

SKU: IGLGB2FFR1656- IGLGB2FFS1656

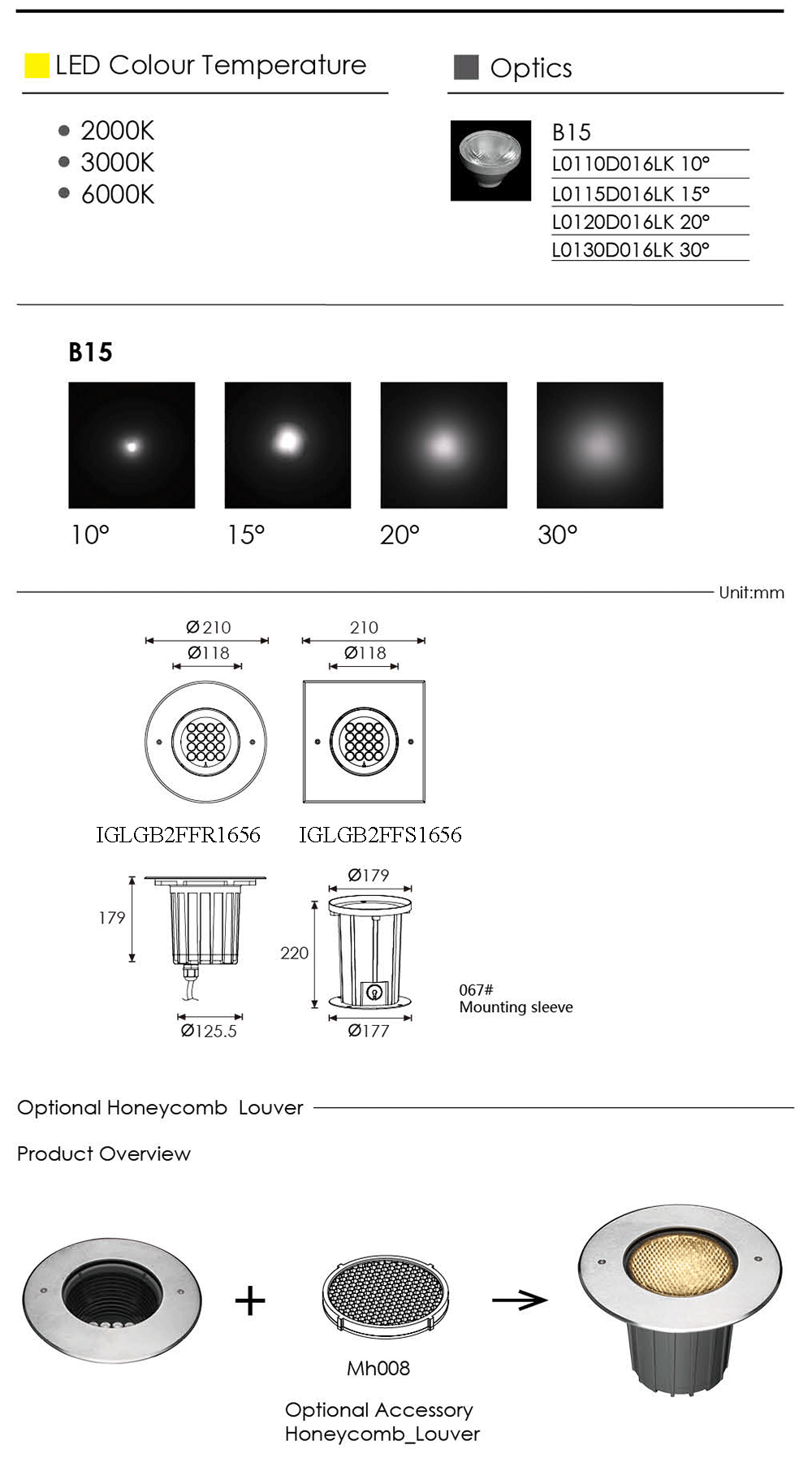

Depth illuminant LED inground light IGLGB2FFR1656- IGLGB2FFS1656

Depth illuminant LED inground light IGLGB2FFR1656 and IGLGB2FFS1656
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered glass.T=10mm
Reflector: Optical reflector effeciency = 90%
LED: OSRAM SMD3030
Glass pressure capacity: Full area = 2961kgs
Cable gland: IP68 PG-11 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

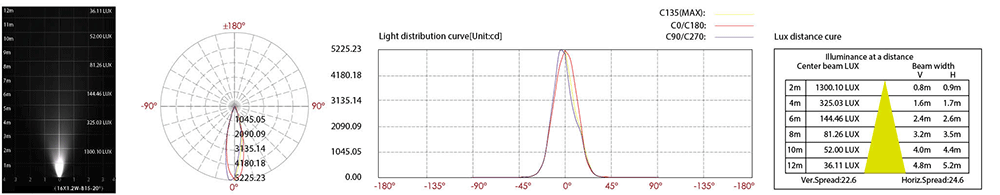

Specifications:

Item	IGLGB2FFR1656	IGLGB2FFR1656
Light source	16 x 1.2W	16 x 1.2W
Reflector	B15	B15
The manufacturer selected lens degree (º) ϴ1/2	10º, 15º, 20º, 30º	10º, 15º, 20º, 30º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 800 120V = 166 240V = 85	24V = 800 120V = 166 240V = 85
Typical consumption (W)	24V = 19 120V = 19 240V = 19	24V = 19 120V = 19 240V = 19
Typical luminance (lm)	Cool white = 1620 Warm white = 1475	Cool white = 1620 Warm white = 1475
IP rate	IP67	IP67
IK rate	10	10
