Đèn âm đất chiếu sâu, đèn led chiếu sâu âm đất, depth illuminant led inground light, depth inground light

SKU: IGLGB2DFR0457 - IGLGB2DFS0457

Depth illuminant LED inground light IGLGB2DFR0457 - IGLGB2DFS0457

Depth illuminant LED inground light IGLGB2DFR0457 and IGLGB2DFS0457
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered glass.T=8mm
Reflector: Optical reflector effeciency = 90%
LED: OSRAM SMD3030
Glass pressure capacity: Full area = 2526kgs
Cable gland: IP68 PG-11 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

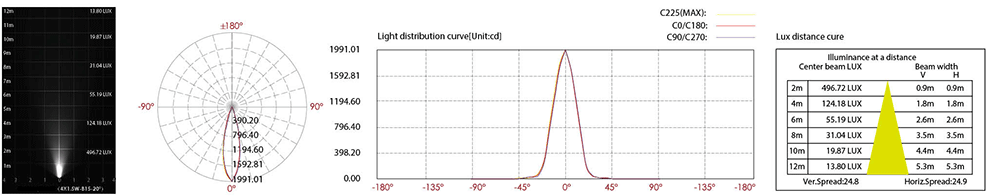

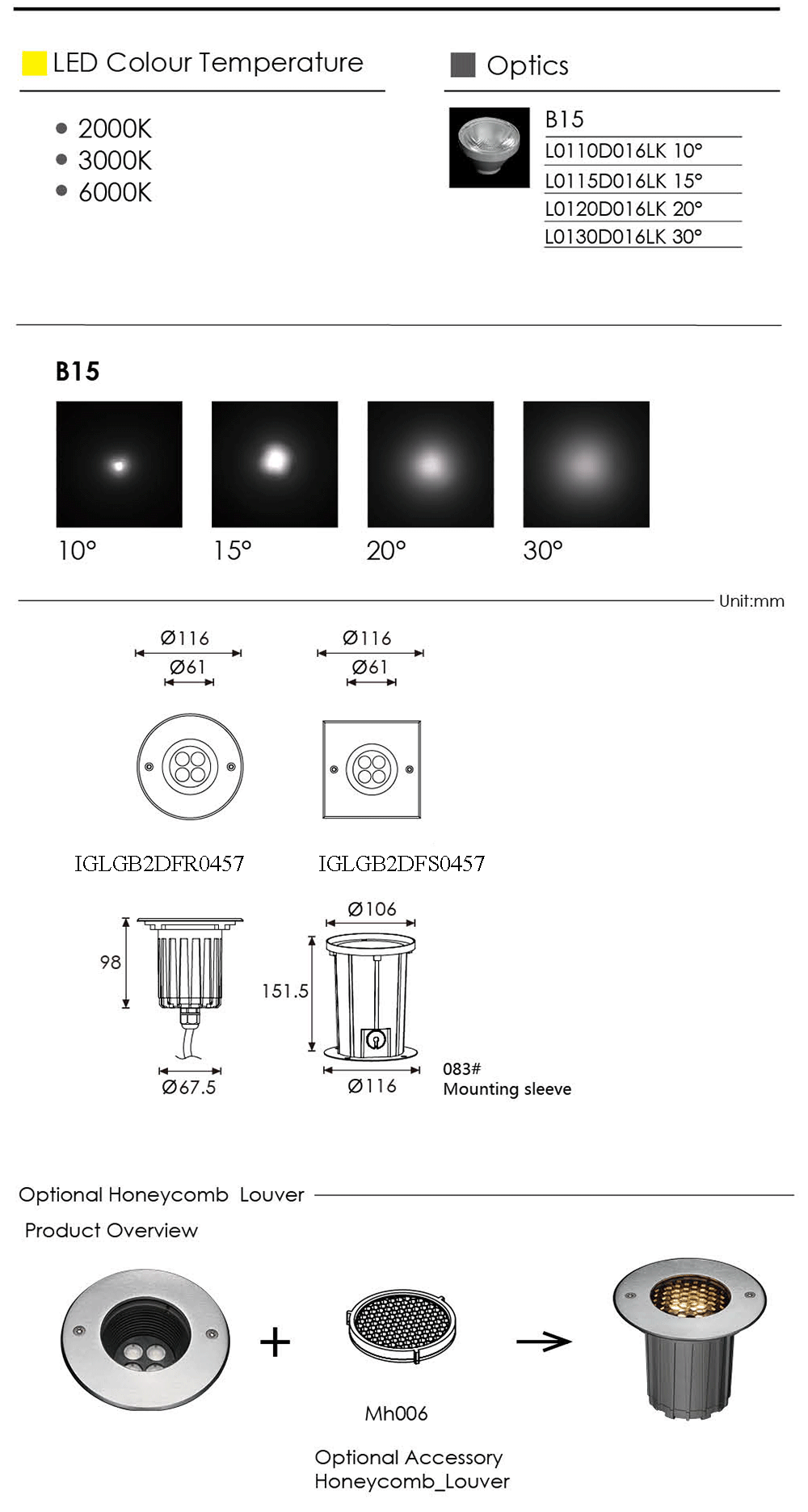

Specifications:

Item	IGLGB2DFR0457	IGLGB2DFS0457
Light source	4 x 2.0W	4 x 2.0W
Reflector	B15	B15
The manufacturer selected lens degree (º) ϴ1/2	10º, 15º, 20º, 30º	10º, 15º, 20º, 30º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 270 120V = 69 240V = 38	24V = 270 120V = 69 240V = 38
Typical consumption (W)	24V = 6.50 120V = 7.60 240V = 7.50	24V = 6.50 120V = 7.60 240V = 7.50
Typical luminance (lm)	Cool white = 600 Warm white = 488	Cool white = 600 Warm white = 488
IP rate	IP67	IP67
IK rate	09	09
