Đèn âm đất chiếu sâu, đèn led chiếu sâu âm đất, depth illuminant led inground light, depth inground light

SKU: IGLGB2CFR0158 - IGLGB2CFS0158

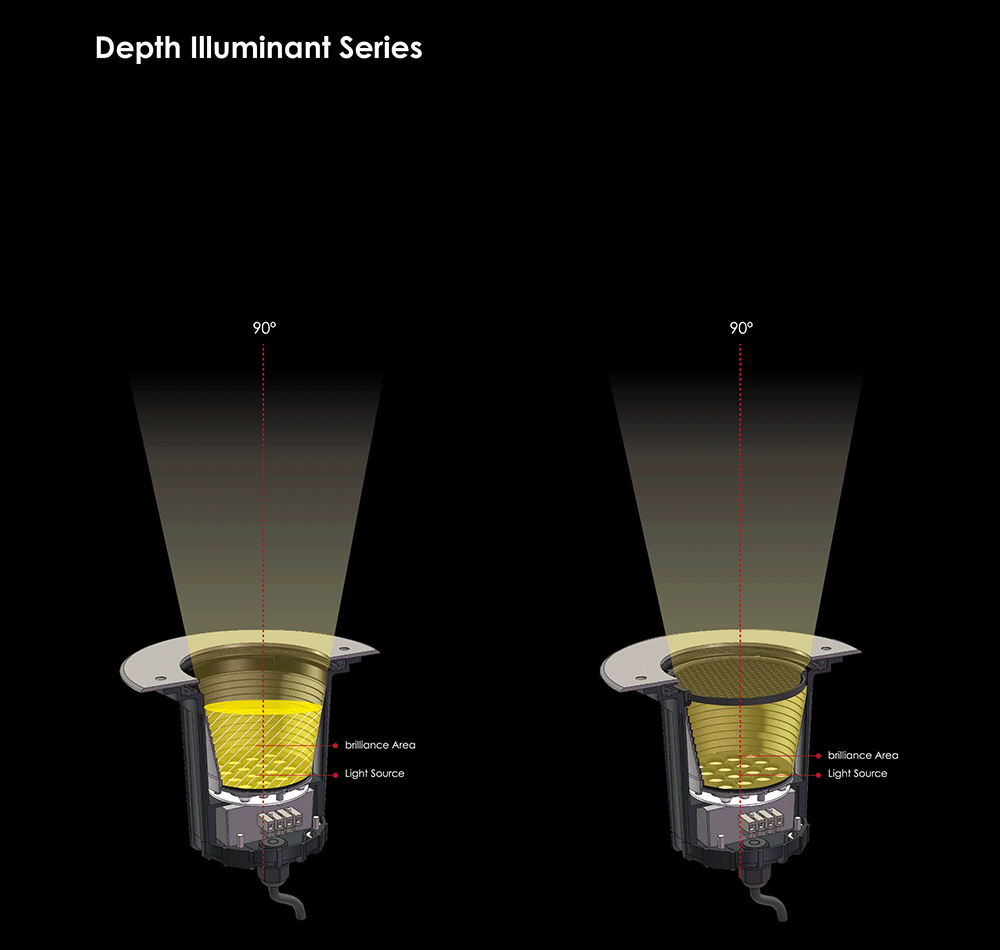

Depth illuminant LED inground light IGLGB2CFR0158 - IGLGB2CFS0158

Depth illuminant LED inground light IGLGB2CFR0158 and IGLGB2CFS0158
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered glass.T=6mm
Reflector: Optical reflector effeciency = 90%
LED: OSRAM SMD3030
Glass pressure capacity: Full area = 1195kgs
Cable gland: IP68 PG-9 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

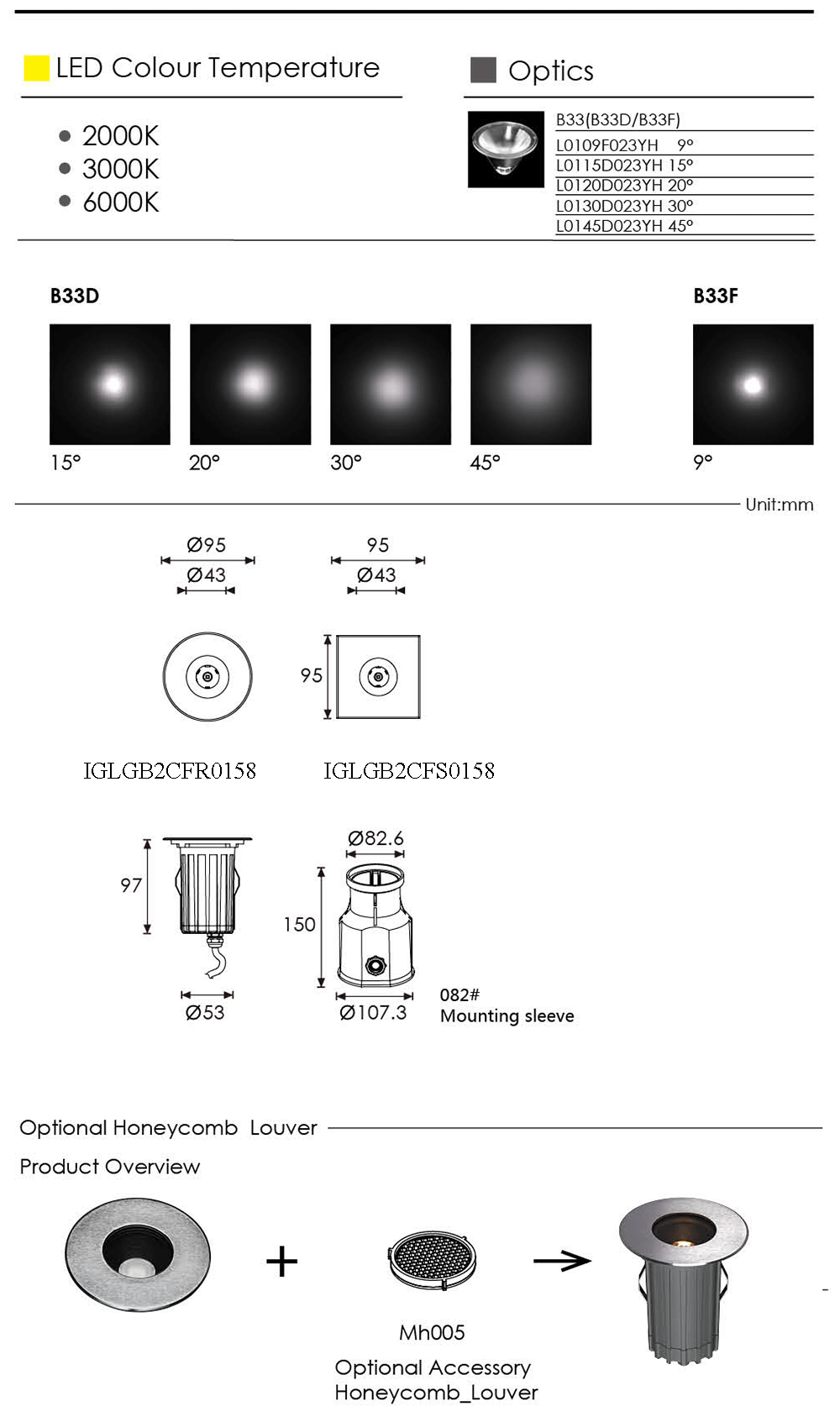

Specifications:

Item	IGLGB2CFR0158	IGLGB2CFS0158
Light source	1 x 4.0W	1 x 4.0W
Reflector	B33	B33

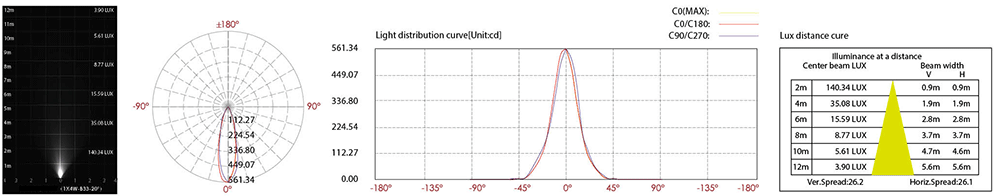

The manufacturer selected lens degree (º) ϴ1/2	9º, 15º, 20º, 30º, 45º	9º, 15º, 20º, 30º, 45º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 131 120V = 64 240V = 35	24V = 131 120V = 64 240V = 35
Typical consumption (W)	24V = 3.10 120V = 4.30 240V = 4.10	24V = 3.10 120V = 4.30 240V = 4.10
Typical luminance (lm)	Cool white = 230 Warm white = 200	Cool white = 230 Warm white = 200
IP rate	IP67	IP67
IK rate	09	09
