SKU: SPLR3BQB0128 S

COB LED Garden Flood light SPLR3BQB0128S

COB LED Garden Flood light SPLR3BQB0128S
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
LED: NICHIA
Light window: Tempered glass.T=4mm
Cable gland: IP67 PG-9 copper and nickel coated
Gasket: Molding shaped silicone double seal
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity ≥ 90%
LED Driver: Constant Voltage Input, Constant Current Output
Reflector: Optical reflector efficiency ≥ 90%
Operating temperature: -20˚C~40˚C
Spike: ABS Spike 7a
Power Cable: H05RN-F 2x1.0mm2 L=2.0m (low voltage)
H05RN-F 3x1.0mm2 L=2.0m (high voltage)
Certificattions: CE, RoHS
IP rate: IP66

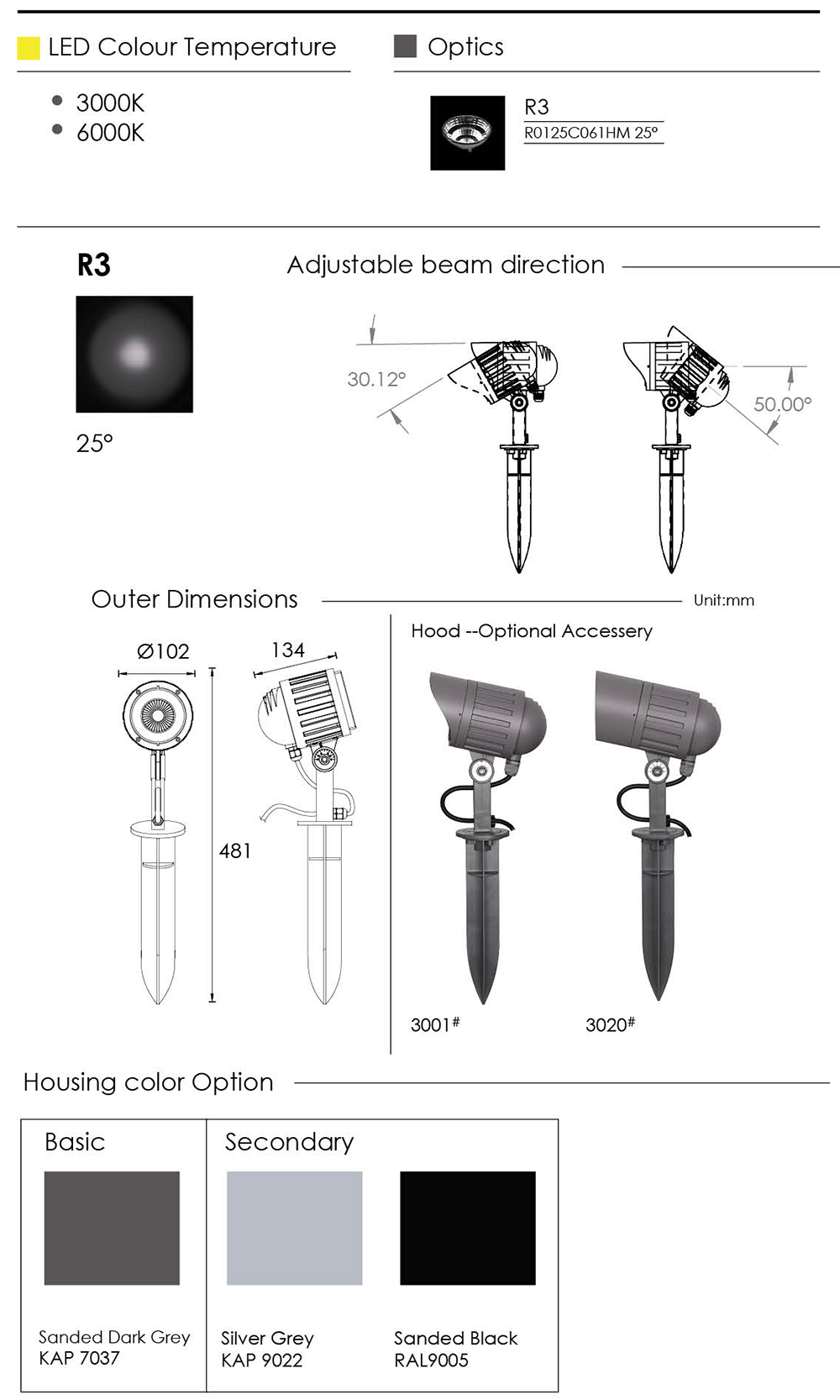

Specifications:

Item	SPLR3BQB0128 S
Light source	1 x 10W COB
Lens	R3

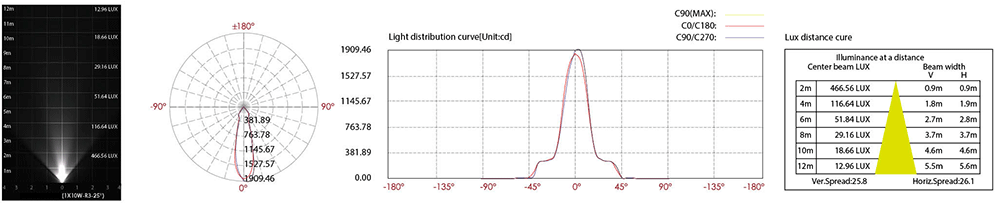

The manufacturer selected lens degree (º) ϴ1/2	25º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 411 120V = 88 240V = 48
Typical consumption (W)	24V = 9.8 120V = 10.5 240V = 10.5
Typical luminance (lm)	Cool white = 685 Warm white = 674
IP rate	IP66
IK rate	05
