SKU: SPLB3AM0157 - SPLB3AB0157

High power LED Garden light SPLB3AM0157 - SPLB3AB0157

High power LED Garden light SPLB3AM0157 and SPLB3AB0157

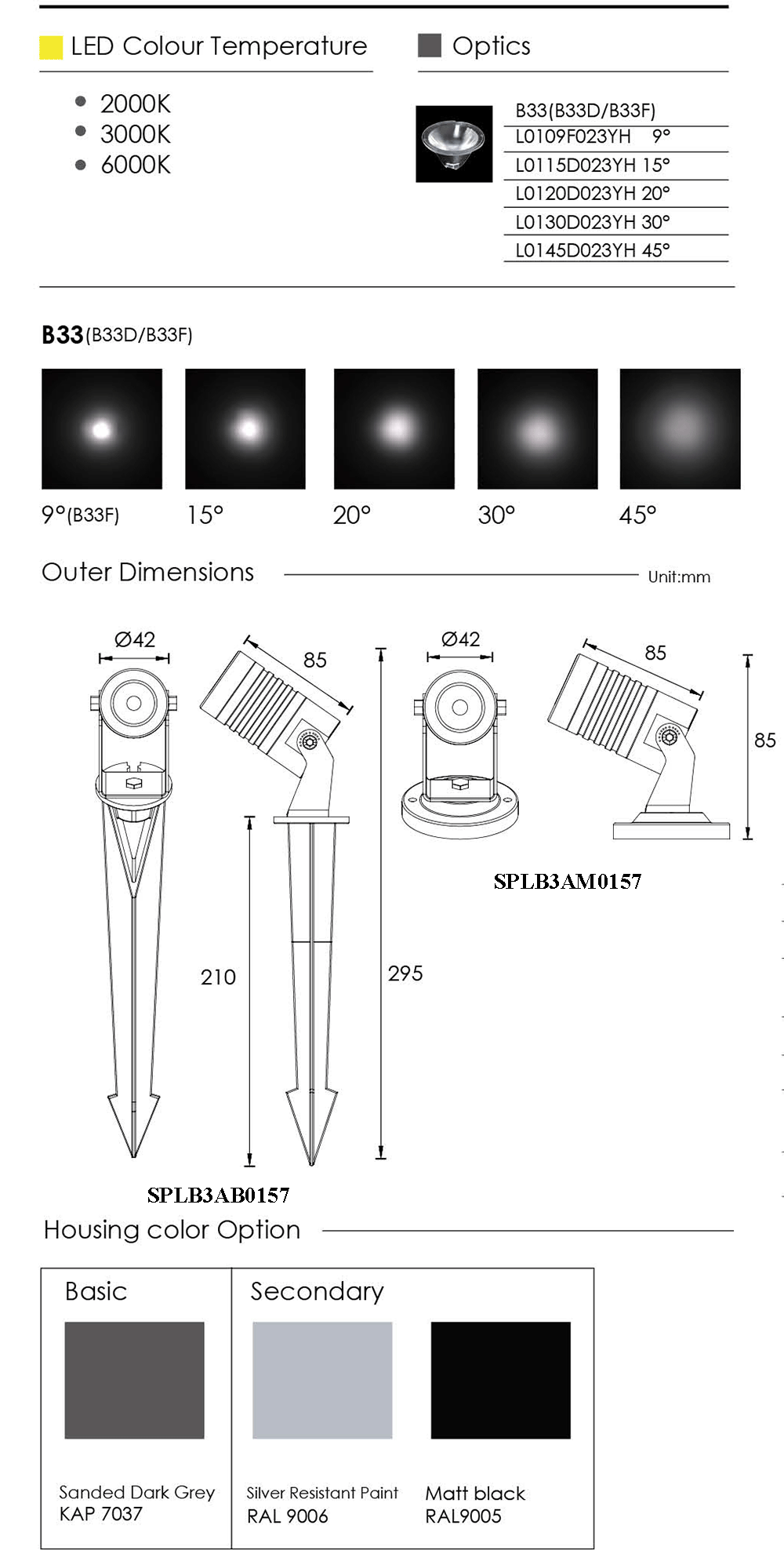

Color temperature:
2000K
3000K
6000K
Front cover & Housing: Aluminum anodized finishing or powder painting
Lens: Optical lens, efficiency ≥ 85%
Light window: Tempered glass T=3mm
Cable gland: Nickel coated copper
Gasket: Tooling shaped seal
LED: OSRAM
PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity ≥ 2.0w/mk
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=2.0m (Low voltage)
H05RN-F 3X1.0mm2 L=2.0m (High voltage)
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP66

Thông số kỹ thuật:

Item	SPLB3AM0157	SPLB3AB0157
Light source	1 x 2W	1 x 2W
Lens	B33	B33

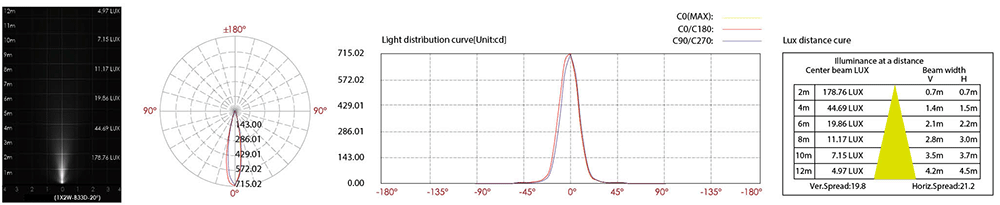

The manufacturer selected lens degree (º) ϴ1/2	9º, 15º, 20º, 30º, 45º	9º, 15º, 20º, 30º, 45º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 110 120V= 48 240V = 28	24V = 110 120V= 48 240V = 28
Typical consumption (W)	24V = 2.6 120V= 3.0 240V = 3.0	24V = 2.6 120V= 3.0 240V = 3.0
Typical luminance (lm)	Cool white = 149 Warm white = 120	Cool white = 149 Warm white = 120
IP rate	IP66	IP66
IK rate	02	02
