SKU: SPLR3FUM0126 - SPLR3FUB0126

COB LED Landscape Flood light SPLR3FUM0126 - SPLR3FUB0126

COB LED Landscape Flood light SPLR3FUM0126 - SPLR3FUB0126
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel (SUS 304#, 316# optional)
Light window: Tempered glass.T=4mm
Gasket: Tooling shaped seal
LED: COB LED 6W
Cable gland: IP68 PG-9 PA66
Bracket: Powder coated aluminum
Reflector: Optical reflector efficiency ≥ 90%
Power Cable: H05RN-F 2x1.0mm2 L=2.0m (low voltage)
H05RN-F 3x1.0mm2 L=2.0m (high voltage)
Mounting base: 12# Die-casting dark grey powder coated aluminum
Certificattions: CE, RoHS
IP rate: IP66

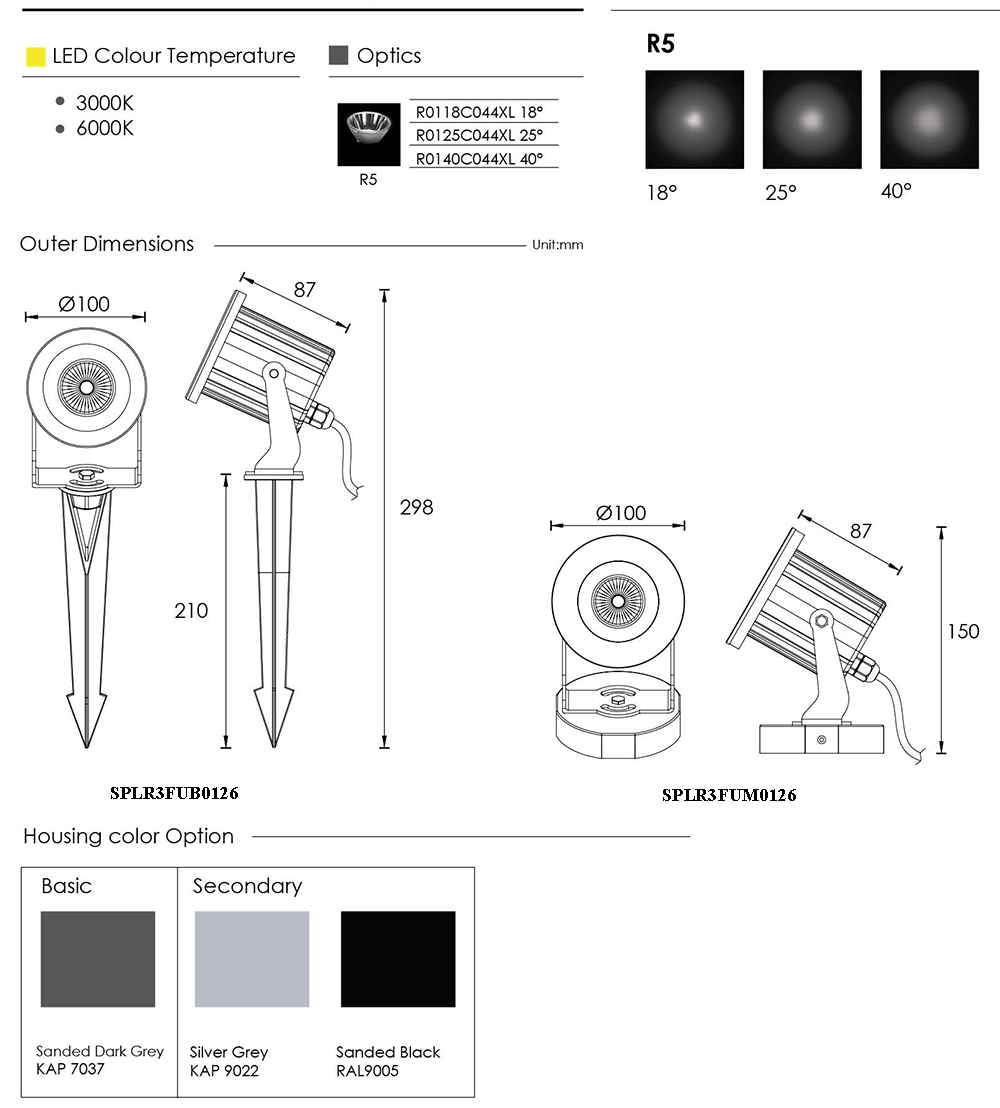

Specifications:

Item	SPLR3FUM0126	SPLR3FUB0126
Light source	1 x 6W COB	1 x 6W COB
Lens	R5	R5
The manufacturer selected lens degree (º) ϴ1/2	18º, 25º, 40º	18º, 25º, 40º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 270 120V = 65 240V = 37	24V = 270 120V = 65 240V = 37
Typical consumption (W)	24V = 6.5 120V = 7.7 240V = 7.8	24V = 6.5 120V = 7.7 240V = 7.8
Typical luminance (lm)	Cool white = 758 Warm white = 662	Cool white = 758 Warm white = 662
IP rate	IP66	IP66
IK rate	04	04
