SKU: IGLXB2FT0356

Beam Direction Adjustable Inground light IGLXB2FT0356

Beam Direction Adjustable Inground light IGLXB2FT0356
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Light window: Tempered frosted step glass.T=6mm
Lens: Optical lens efficiency ≥ 85%
LED: OSRAM
Glass pressure capacity: Full area = 1226kgs
Cable gland: IP68 PG-9 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 073#
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS, ETL-EU
IP rate: IP67

Specifications:

Item	IGLXB2FT0356
Light source	3 x 1W
Lens	B15

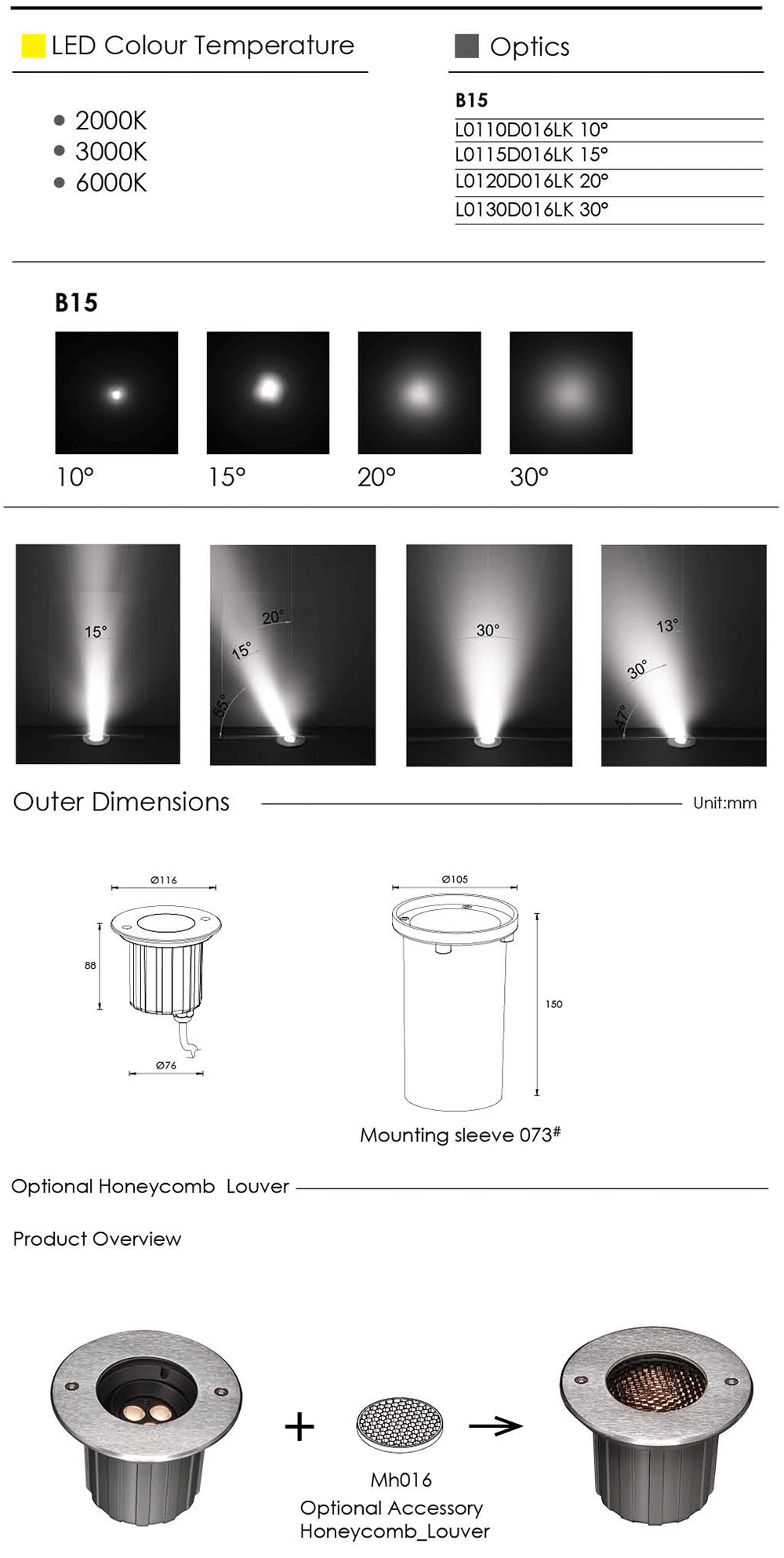

The manufacturer selected lens degree (º) ϴ1/2	10º, 15º, 20º, 30º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 131 120V = 72 240V = 40
Typical consumption (W)	24V = 3.1 120V = 4.6 240V = 4.8

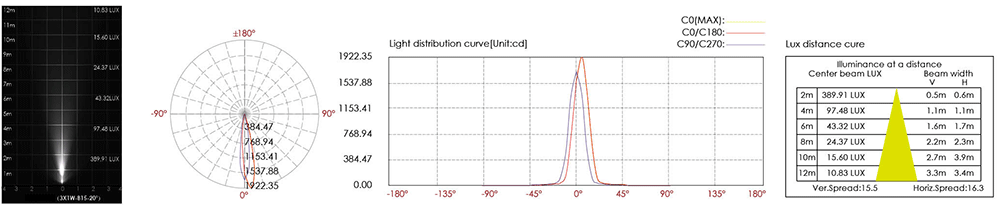

Typical luminance (lm)	Cool white = 303 Warm white = 224
IP rate	IP67
IK rate	09
