Đèn âm đất mini, đèn âm đất góc chiếu thẳng, đèn âm đất góc chiếu đứng, asymmetrical power LED inground light, đèn âm đất bất đối xứng

SKU: IGLC2WDR0157A

Asymmetrical Power LED inground light IGLC2WDR0157 A

Asymmetrical Power LED inground light IGLC2WDR0157 A
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Light Window: Tempered frosted step glass.T=7mm
LED: OSRAM
Glass pressure capacity: Full area = 1704kgs
Gasket: Molding shaped silicone seal
Lens: Optical lens effeciency ≥85%
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 011#
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

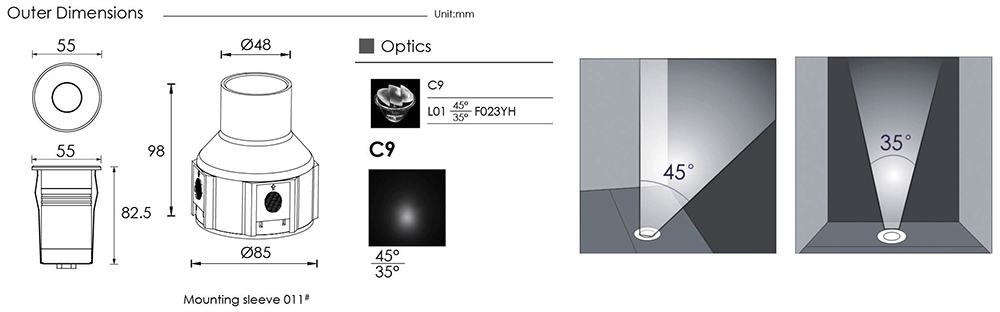

Specifications:

Item	IGLC2WDR0157 A
Light source	1 x 2W
Lens	C9
The manufacturer selected lens degree (º) ϴ1/2	45º 35º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 105 120V = 47 240V = 28
Typical consumption (W)	24V = 2.5 120V = 3.0 240V = 3.1

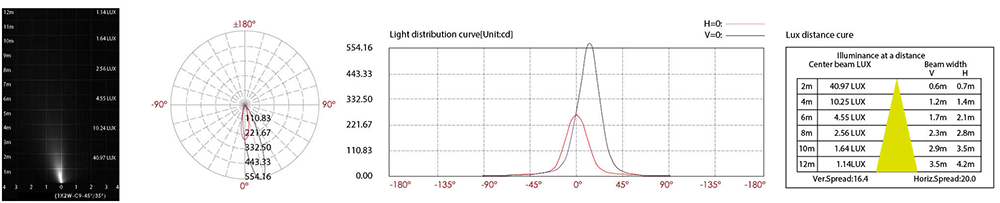

Typical luminance (lm)	Cool white = 158 Warm white = 130
IP rate	IP67
IK rate	08
