Đèn led âm đất công suất cao, đèn led âm đất bất đối xứng công suất cao, asymmetrical high luminance LED inground light, up light high power

SKU: IGLFC2VAR0658 - IGLFC2VAS0658

Asymmetrial 20W High luminance LED Inground light IGLFC2VAR0658 - IGLFC2VAS0658

Asymmetrial 20W High luminance LED Inground light IGLFC2VAR0658 and IGLFC2VAS0658
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front ring: Hard chromeplated Stainless steel SUS 316L#
Light Window: Tempered frosted step glass.T=8mm
Glass pressure capacity: Full area = 3489kgs
Cable gland: IP68 PG-9 PA66
Gasket: Silicone seal
LED: OSRAM
Lens: Optical lens effeciency ≥ 85%
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 057#
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

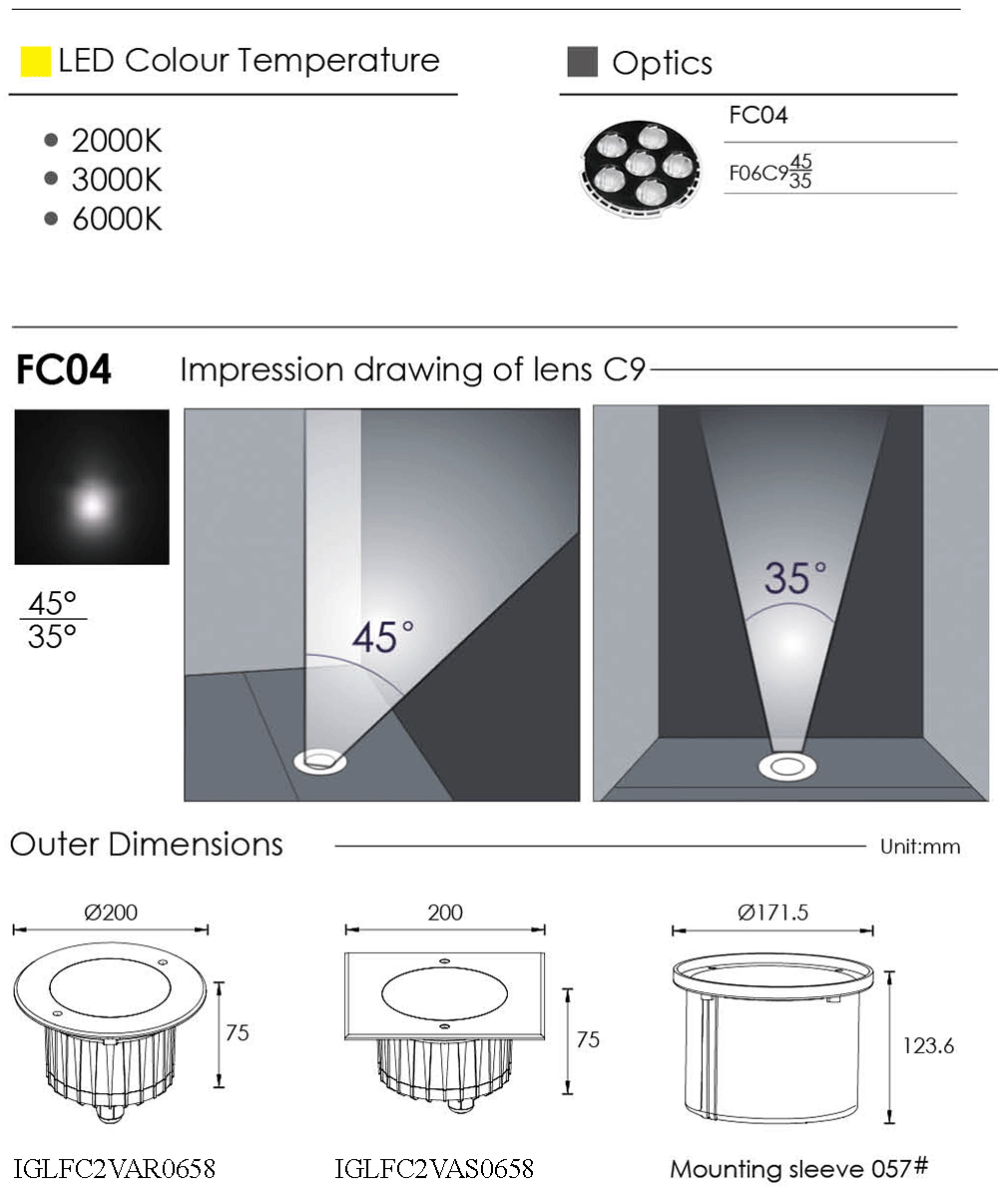

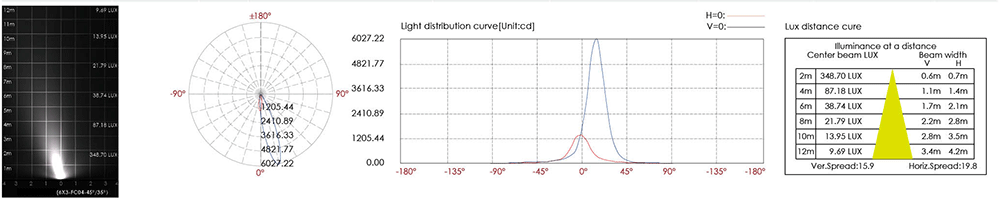

Specifications:

Item	IGLFC2VAR0658	IGLFC2VAS0658
Light source	6 x 3W NICHIA	6 x 3W NICHIA
Lens	FC04	FC04
The manufacturer selected lens degree (º) ϴ1/2	45º 35º	45º 35º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 850 120V = 160 240V = 89	24V = 850 120V = 160 240V = 89
Typical consumption (W)	24V = 20.4 120V = 18.6 240V = 18.8	24V = 20.4 120V = 18.6 240V = 18.8
Typical luminance (lm)	Cool white = 1543 Warm white = 1307	Cool white = 1543 Warm white = 1307
IP rate	IP67	IP67
IK rate	09	09
