SKU: IGLXB2FFR0956 - IGLXB2FFS0956

Adjustable Beam Direction LED inground light IGLXB2FFR0956 - IGLXB2FFS0956

Adjustable Beam Direction LED inground light IGLXB2FFR0956 and IGLXB2FFS0956
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered white coating glass.T=8mm
Glass pressure capacity: Full area = 2961kgs
Cable gland: IP68 PG-11 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS Housing with iron base
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLXB2FFR0956	IGLXB2FFS0956
Light source	9 x 1.2W	9 x 1.2W

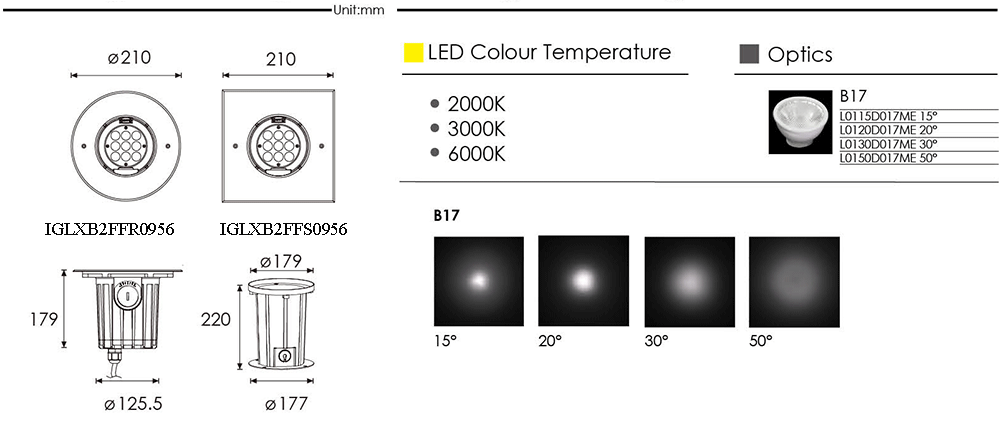

Reflector	B17	B17
The manufacturer selected lens degree (º) ϴ1/2	15º, 20º, 30º, 50º	15º, 20º, 30º, 50º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 500 120V = 112 240V = 64	24V = 500 120V = 112 240V = 64
Typical consumption (W)	24V = 12.0 120V = 13.2 240V = 13.2	24V = 12.0 120V = 13.2 240V = 13.2

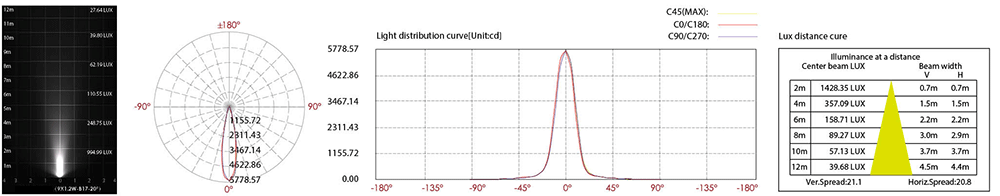

Typical luminance (lm)	Cool white = 1090 Warm white = 756	Cool white = 1090 Warm white = 756
IP rate	IP67	IP67
IK rate	10	10
