SKU: IGLXB2EFR0656 - IGLXB2EFS0656

Adjustable Beam Direction LED inground light IGLXB2EFR0656 - IGLXB2EFS0656

Adjustable Beam Direction LED inground light IGLXB2EFR0656 and IGLXB2EFS0656
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered white coating glass.T=8mm
Glass pressure capacity: Full area = 2621kgs
Cable gland: IP68 PG-11 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS Housing with iron base
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

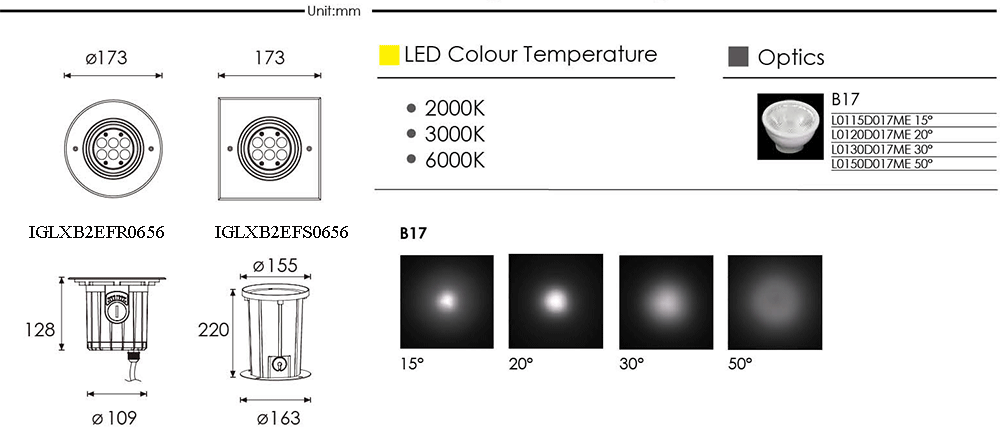

Specifications:

Item	IGLXB2EFR0656	IGLXB2EFS0656
Light source	6 x 1.2W	6 x 1.2W
Reflector	B17	B17
The manufacturer selected lens degree (º) ϴ1/2	15º, 20º, 30º, 50º	15º, 20º, 30º, 50º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 325 120V = 70 240V = 46	24V = 325 120V = 70 240V = 46
Typical consumption (W)	24V = 7.8 120V = 9.2 240V = 9.2	24V = 7.8 120V = 9.2 240V = 9.2
Typical luminance (lm)	Cool white = 700 Warm white = 570	Cool white = 700 Warm white = 570
IP rate	IP67	IP67
IK rate	10	10
