SKU: IGLXB2DFR0257 - IGLXB2DFS0257

Adjustable Beam Direction LED inground light IGLXB2DFR0257 - IGLXB2DFS0257

Adjustable Beam Direction LED inground light IGLXB2DFR0257 and IGLXB2DFS0257
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel SUS 316L#
Glass: Step tempered white coating glass.T=8mm
Glass pressure capacity: Full area = 2526kgs
Cable gland: IP68 PG-11 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS Housing with iron base
Dimmable Support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

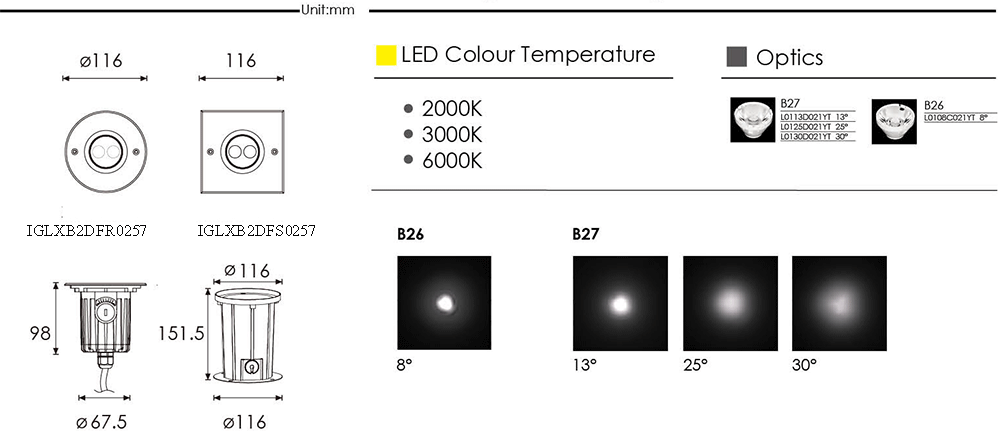

Specifications:

Item	IGLXB2DFR0257	IGLXB2DFS0257
Light source	2 x 1.5W	2 x 1.5W
Reflector	B27	B27

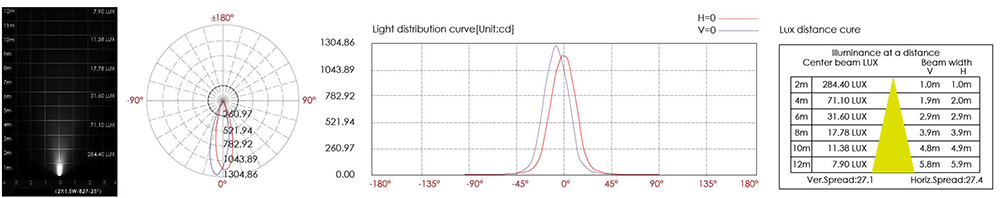

The manufacturer selected lens degree (º) ϴ1/2	8º, 13º, 25º, 30º	8º, 13º, 25º, 30º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 150 120V = 36 240V = 24	24V = 150 120V = 36 240V = 24
Typical consumption (W)	24V = 3.6 120V = 3.8 240V = 3.8	24V = 3.6 120V = 3.8 240V = 3.8
Typical luminance (lm)	Cool white = 250 Warm white = 190	Cool white = 250 Warm white = 190
IP rate	IP67	IP67
IK rate	09	09
