Đèn âm đất hiệu suất cao, đèn pha âm đất phát sáng cao, high luminance output inground flood light

SKU: IGLR2DFR0126 - IGLR2DFS0126

High luminance output inground flood light IGLR2DFR0126 - IGLR2DFS0126

High luminance output inground flood light IGLR2DFR0126 - IGLR2DFS0126
Housing: 12# Die-casting dark grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated stainless steel SUS 316L#
Light window: Tempered froshed step glass T=8mm
Reflector: Optical reflector effeciency ≥ 90%
LED: NICHIA COB

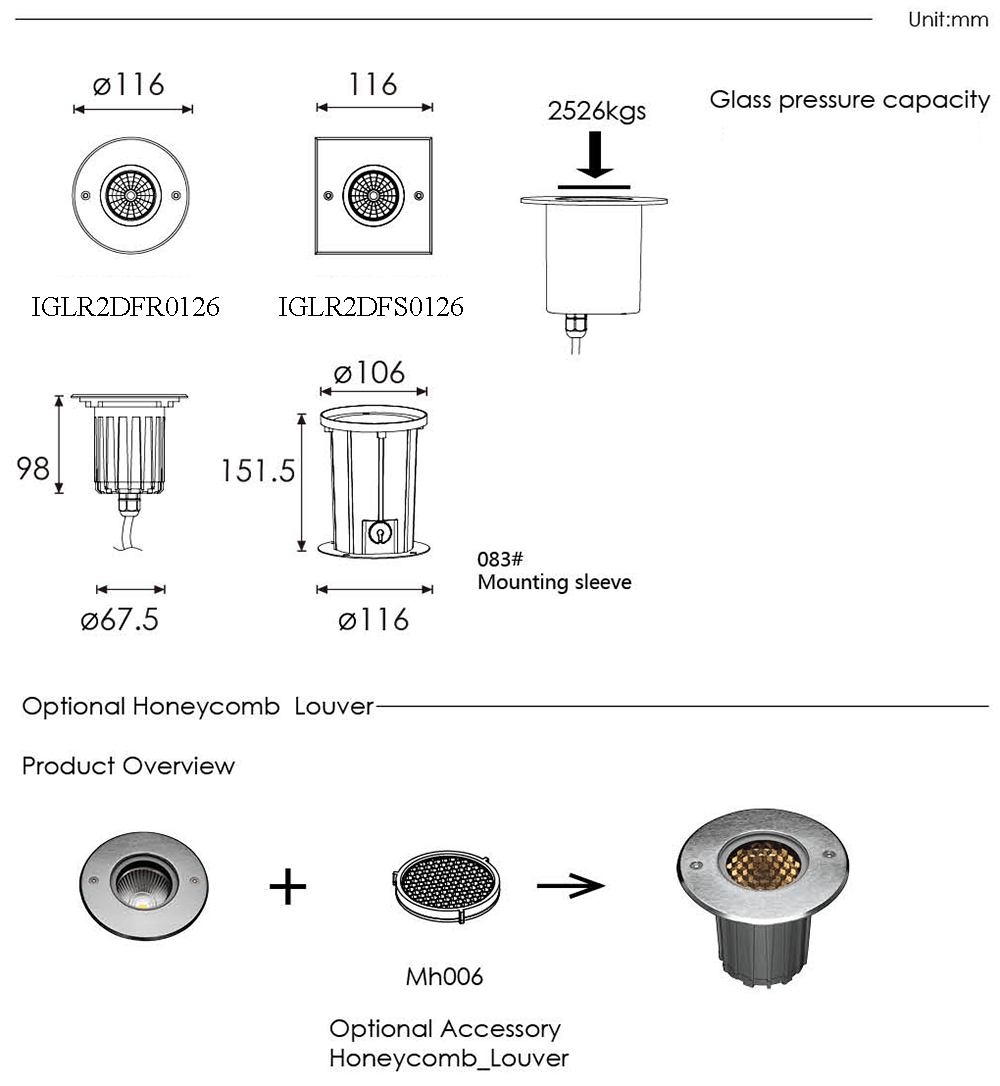

Glass pressure capacity: Full area = 2526kgs
Cable gland: IP68 PG-9 PA66
Gasket: Molding shaped seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 067#
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLR2DFR0126	IGLR2DFS0126
Light source	1 x 7W COB	1 x 7W COB

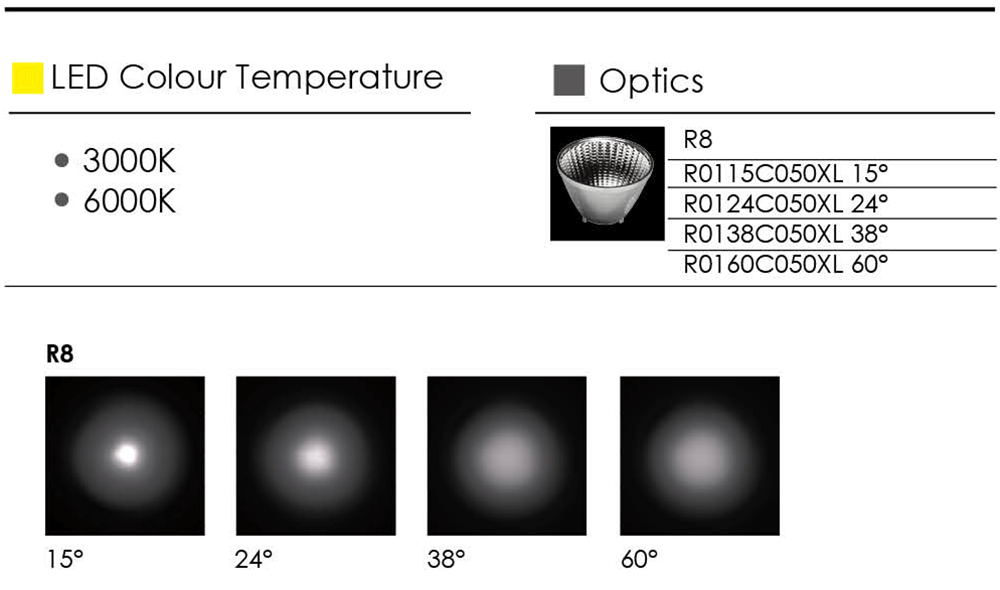

Reflector	R8	R8
The manufacturer selected lens degree (º) ϴ1/2	15º, 24º, 38º, 60º	15º, 24º, 38º, 60º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 324 120V =72 240V = 40	24V = 324 120V =72 240V = 40
Typical consumption (W)	24V = 7.7 120V = 8.5 240V = 8.5	24V = 7.7 120V = 8.5 240V = 8.5

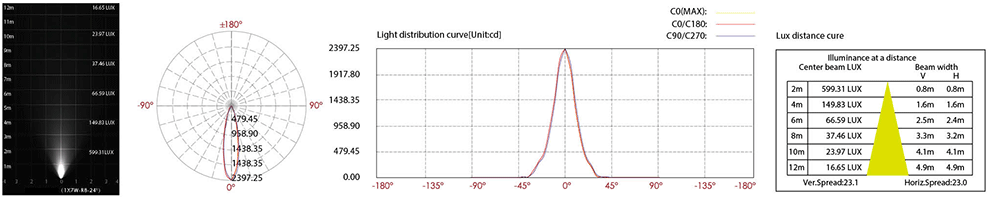

Typical luminance (lm)	Cool white = 921 Warm white = 744	Cool white = 921 Warm white = 744
IP rate	IP67	IP67
IK rate	09	09
