SKU: IGLRB2CCAR0125 - IGLRB2CNAR0126

Surface mounted wall washing light IGLRB2CCAR0125 - IGLRB2CNAR0126

Surface mounted wall washing light IGLRB2CCAR0125 - IGLRB2CNAR0126
Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Glass: Step tempered glass T=4mm
Reflector: Optical reflector effeciency ≥ 90%
LED: Multi chip on board LED
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Dimmable support: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP65

Specifications:

Item	IGLRB2CCAR0125	IGLRB2CNAR0126
Light source	1 x 5W	1 x 6W

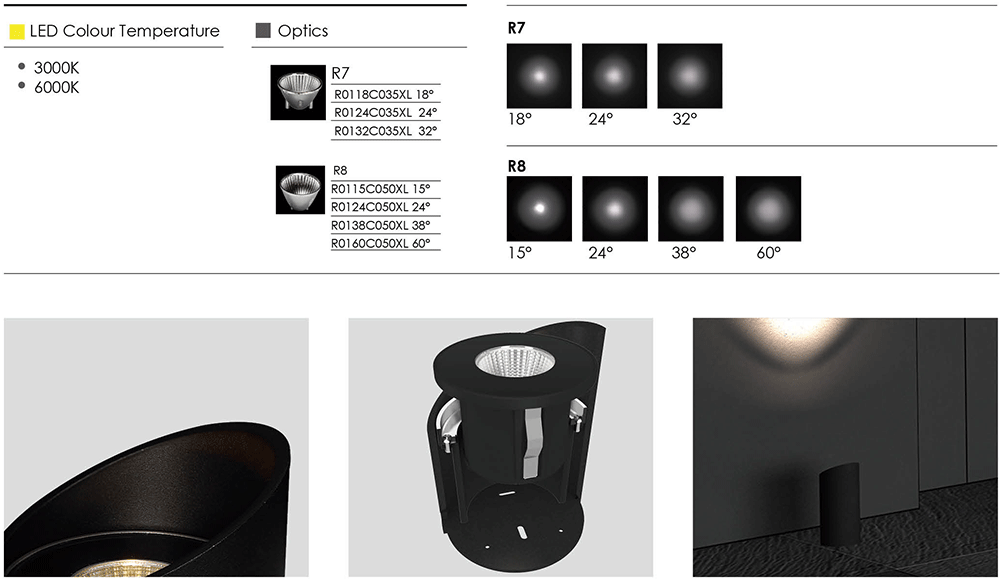

Lens	R7	R8

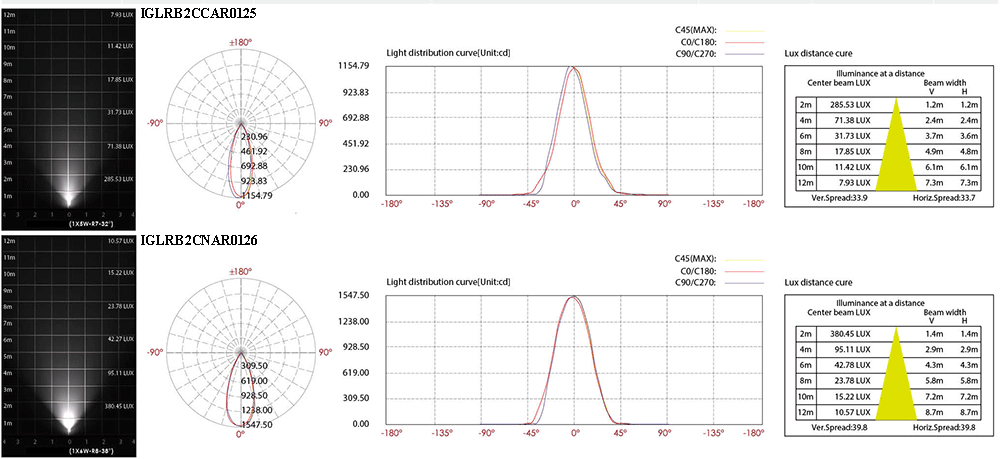

The manufacturer selected lens degree (º) ϴ1/2	18º, 24º, 32º	15º, 24º, 38º, 60º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 256 120V = 52 240V = 32	24V = 320 120V = 72 240V = 40
Typical consumption (W)	24V = 6.1 120V = 6.5 240V = 6.7	24V = 7.5 120V = 8.2 240V = 8.5
Typical luminance (lm)	460	722
IP rate	IP65	IP65
IK rate	06	08
