Đèn pha gắn tường, đèn led pha gắn tường, đèn rọi tranh, đèn led chiếu tranh, đèn chiếu tranh gắn tường, wall mounting flood light

SKU: SPLR3XBP0128

Wall Mounting Flood light SPLR3XBP0128

Wall Mounting Flood light SPLR3XBP0128
Color temperature:
   3000K
   6000K
Housing: 12# Die-casting powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Light window: Tempered glass.T=4mm
LED: NICHIA
Lens: Optical lens efficiency ≥ 85%
LED Driver: Constant voltage input, Constant current output
Power Cable: H05RN-F 2X1.0mm2 L=2.0m (low voltage)
                      H05RN-F 3X1.0mm2 L=2.0m (high voltage)
Operating temperature: -20˚C~40˚C
Mounting base: Powder coated die-casting aluminum
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP66

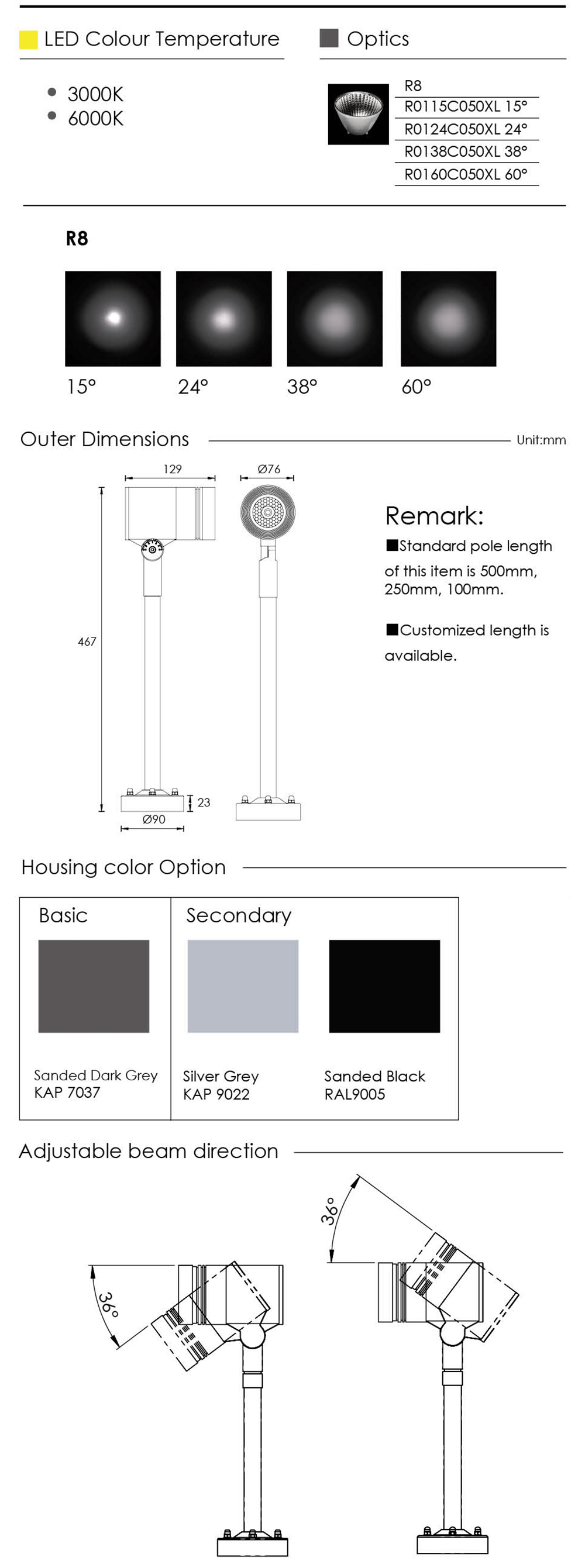

Specifications:

Item	SPLR3XBP0128
Light source	1 x 10W COB
Lens	R8

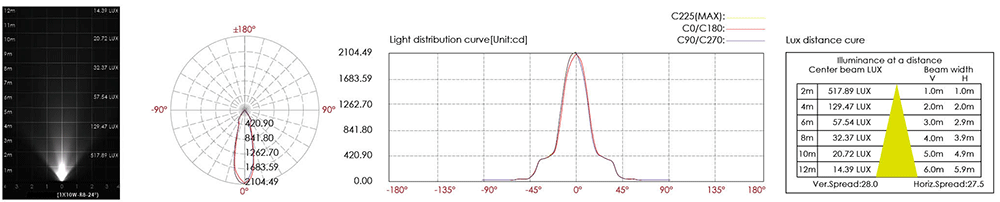

The manufacturer selected lens degree (º) ϴ1/2	15º, 24º, 38º, 60º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 480 120V = 107 240V = 60
Typical consumption (W)	24V = 11.5 120V = 12.6 240V = 12.6
Typical luminance (lm)	Cool white = 1050 Warm white = 956
IP rate	IP66
IK rate	07
