Đèn led chịu tải âm sàn, đèn led chịu tải âm đất, đèn âm đất chịu tải cao, strong load bearing capacity

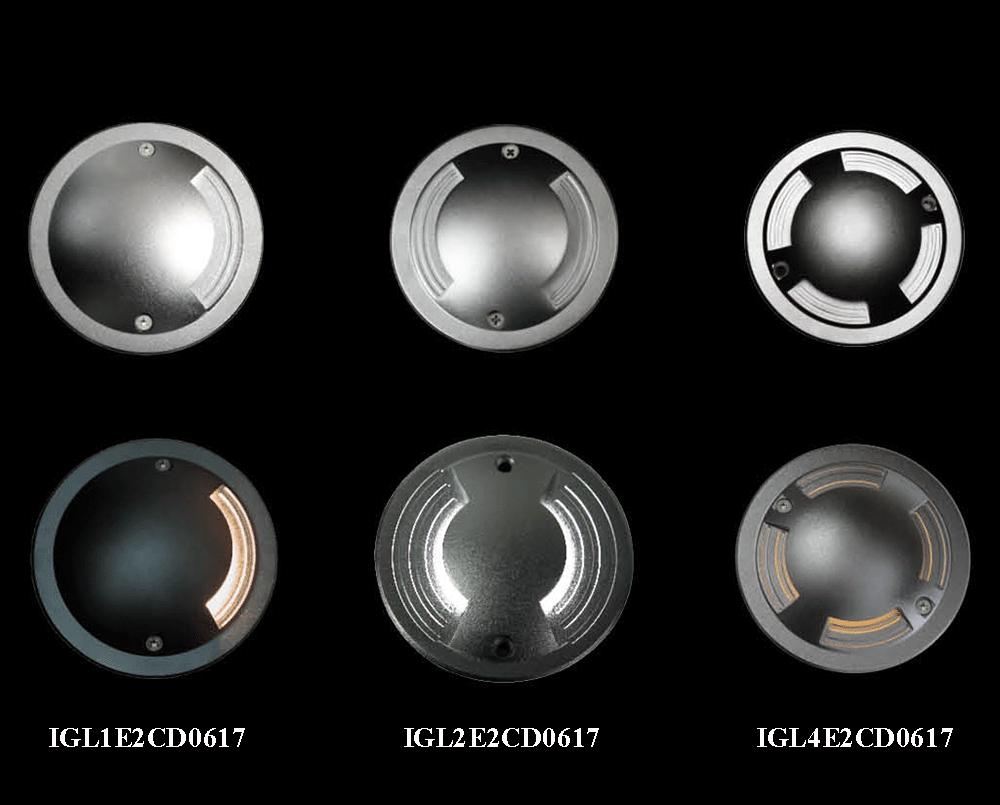

SKU: IGL1E2CD0617 - IGL2E2CD0617 - IGL4E2CD0617

Strong loading bearing capacity IGL1E2CD0617 - IGL2E2CD0617 - IGL4E2CD0617

Strong loading bearing capacity IGL1E2CD0617 - IGL2E2CD0617 - IGL4E2CD0617
Drive-over LED light / Stainless steel front cover
Color temperature:
    2000K
    3000K
    6000K
Housing: 12# Die-casting dark grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated stainless steel SUS 316L#
Light window: Step tempered clear glass T = 8mm
Loading capacity: >2000kgs
Cable gland: IP68 PG-9 PA66
Gasket: Molding shaped silicone seal
LED driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
                      H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 015#
Dimmable supoprt: Triac, PWM, 1-10V, Dali
Certificattions: CE, RoHS
IP rate: IP67

Specifications:

Item	IGL1E2CD0617	IGL2E2CD0617	IGL4E2CD0617
Light source	SMD3030 LED 6 x 0.5W	SMD3030 LED 6 x 0.5W	SMD3030 LED 6 x 0.5W
Input voltage (V)	24V DC 120/240	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 124 120V = 57 240V = 33	24V = 124 120V = 57 240V = 33	24V = 124 120V = 57 240V = 33
Typical consumption (W)	24V = 2.9 120V = 3.9 240V = 4.0	24V = 2.9 120V = 3.9 240V = 4.0	24V = 2.9 120V = 3.9 240V = 4.0
IP rate	IP67	IP67	IP67
IK rate	10	10	10
