Small type Underwater LED Spot light USLB5AF0158
Small type Underwater LED Spot light USLB5AF0158
Color temperature:
2000K
3000K
6000K
Housing: Hard chrome-plated molding shaped stainless steel SUS 316L#
Front cover: Hard chrome plated stainless steel SUSS 316L#
Light window: Step tempered glass.T=7mm
Waterproof seal: EPDM gasket
Lens: Separate optical lens efficiency ≥ 85%
PCB: Exellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0w/mk
LED Driver: Constant Voltage Input, Constant Current Output
Cable gland: IP68 M1 6a copper with nickel coated
Power Cable: H07RN-F 2X1.0mm2 L=3.0m

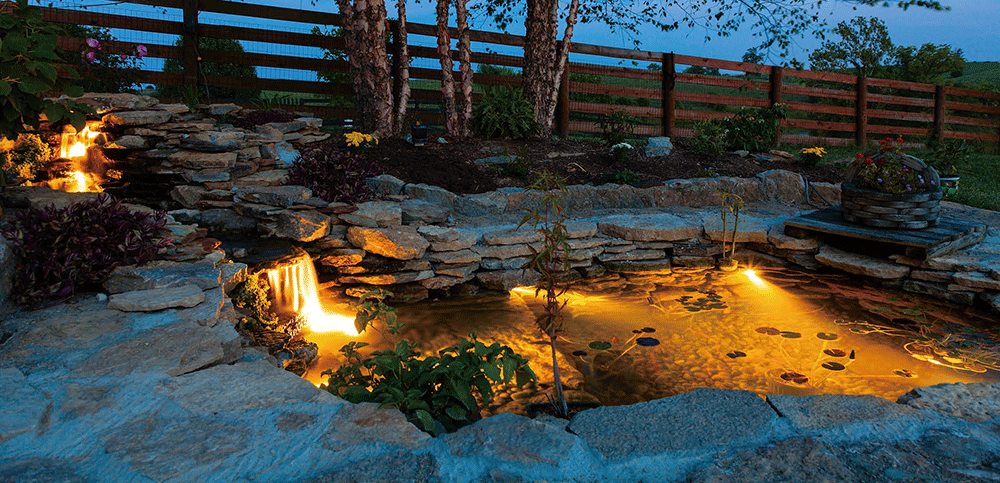

Application environment: Temperature of water between -20˚C~40˚C less than 1 meter depth.
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP68

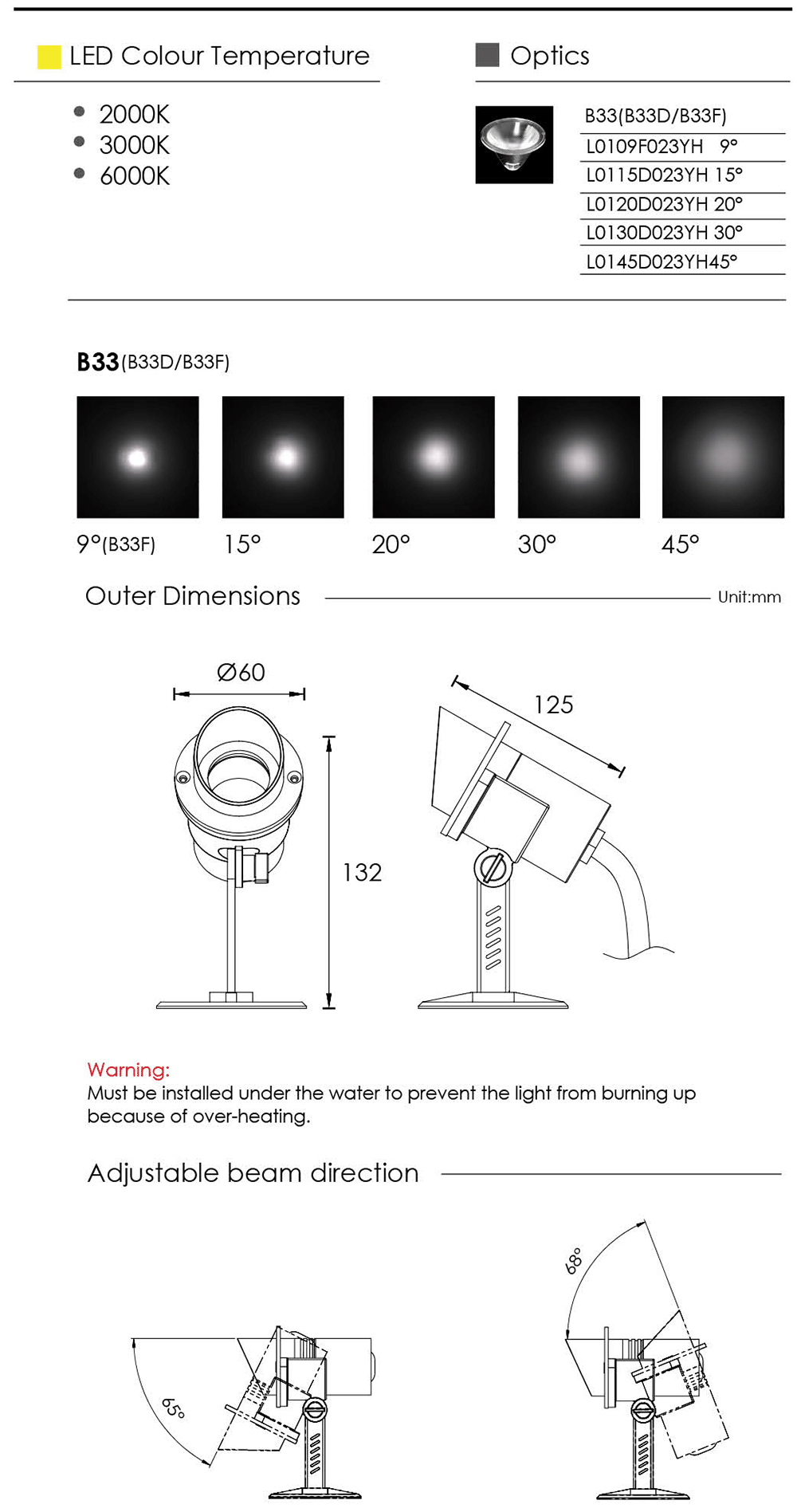

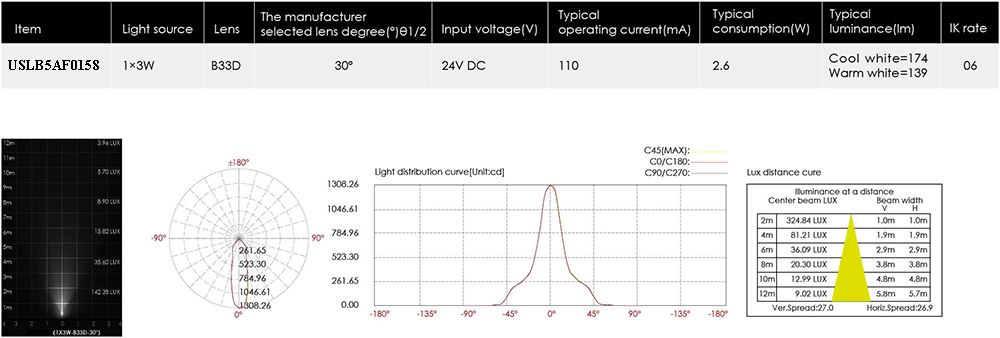

Beam angle: 9º, 15º, 20º, 30º, 45º
