SKU: RWLD1HC1634 - RWLD1HE1634

Recessed LED Wall light RWLD1HC1634 - RWLD1HE1634

Recessed LED Stair light & Wall light - RWLD1HC1634 - RWLD1HE1634
Color temperature:

2000K
3000K
6000K

Housing: 12# Die-casting grey powder coated aluminum.
T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chromeplated Stainless steel 316#
LED: SMD3030 type LED
Cable gland: IP67 copper and nicked coated
Gasket: Molding shaped silicone seal
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=0.5m (low voltage)
H05RN-F 3X1.0mm2 L=0.5m (high voltage)
Mounting sleeve: ABS 092#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP65

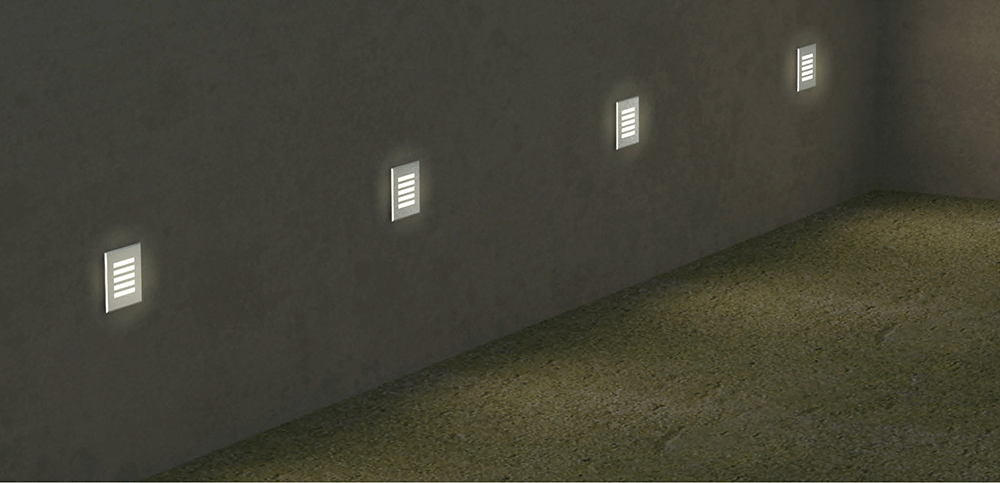

A range of vandal resistant recessed wall light IP65 LED X-LIGHT. Suitable for indoor or outdoor applications in residential, shopping mall and pedestrian areas as decorative guide light, illuminate walkways, corridors, stairs, step light, car ramp wall recessed, car ramp steplight, ...

Specifications:

Item	RWLD1HC1634	RWLD1HE1634
Light source	16 x 0.2W	16 x 0.2W
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 125 120V = 58 240V = 34	24V = 125 120V = 58 240V = 34
Typical consumption (W)	24V = 3.0 120V = 3.7 240V = 3.8	24V = 3.0 120V = 3.7 240V = 3.8
Typical luminance (lm)	Cool white = 35 Warm white = 32	Cool white = 50 Warm white = 45
IP rate	IP65	IP65
IK rate	09	09
