Đèn led âm tường, đèn âm tường, led recessed wall light, Recessed stair light, step light, đèn chân tường, đèn ram dốc, car ramp steplight

SKU: RWLD1FG1834 - RWLD1FH1834

Recessed LED Wall light RWLD1FG1834 - RWLD1FH1834

Recessed LED Stair light & Wall light - RWLD1FG1834 & RWLD1FH1834
Color temperature:

2000K
3000K
6000K

Housing: 12# Die-casting grey powder coated aluminum.
                 T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front cover: 12# Die-casting aluminum RAL7037 powder coated T=20-30μm.
                        Adhesion of ISO class 1/ASTM class 4B
LED: SMD3030 type LED
Cable gland: IP67 copper and nicked coated
Gasket: Molding shaped silicone seal
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=0.5m (low voltage)
                        H05RN-F 3X1.0mm2 L=0.5m (high voltage)

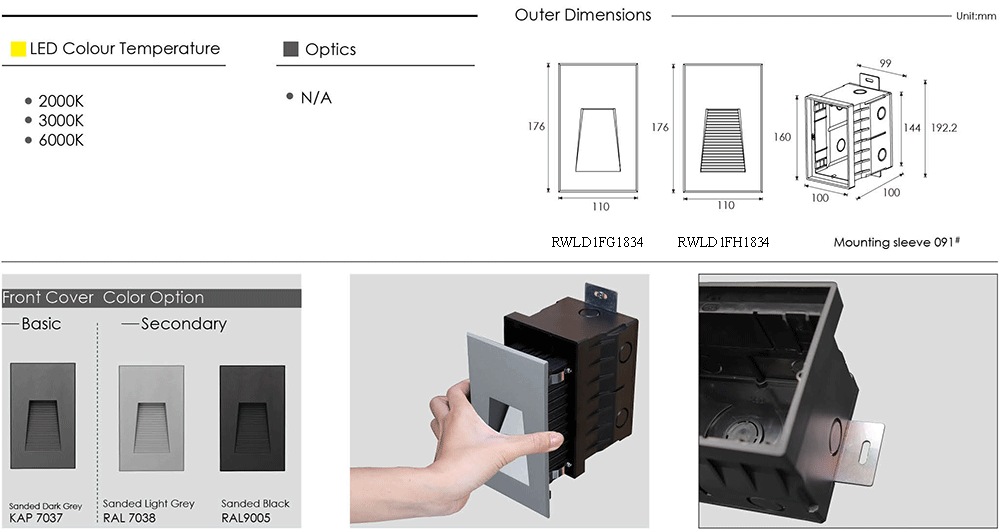

Mounting sleeve: ABS 091#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP65

A range of vandal resistant recessed wall light IP65 LED X-LIGHT. Suitable for indoor or outdoor applications in residential, shopping mall and pedestrian areas as decorative guide light, illuminate walkways, corridors, stairs, step light, car ramp wall recessed, car ramp steplight, ...

Specifications:

Item	RWLD1FG1834	RWLD1FH1834
Light source	18 x 0.2W	18 x 0.2W
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 240 120V = 103 240V = 57	24V = 230 120V = 103 240V = 57
Typical consumption (W)	24V = 5.5 120V = 7.0 240V = 7.0	24V = 5.5 120V = 7.0 240V = 7.0

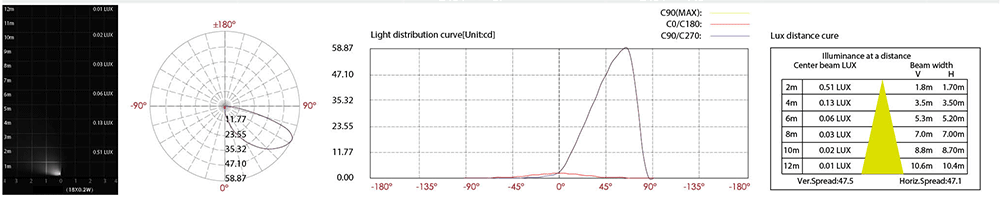

Typical luminance (lm)	Cool white = 58.0 Warm white = 45.6	Cool white = 54.8 Warm white = 43.0
IP rate	IP65	IP65
IK rate	10	10
