Đèn led âm tường, đèn âm tường, led recessed wall light, Recessed stair & wall light, step light, đèn chân tường, đèn ram dốc

SKU: RWLD1FL1014

Recessed LED Stair light & Wall light RWLD1FL1014

Recessed LED Stair light & Wall light - RWLD1FL1014
Color temperature:

2000K
3000K
6000K

Housing: 12# Die-casting grey powder coated aluminum.
T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front cover: Hard chrome-plated stainless steel SUS 316L#
Light Window: Step tempered glass. T=8mm
Cable gland: IP68 PG-9 PA66
Gasket: Tooling shaped seal
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=0.5m (low voltage)
H05RN-F 3X1.0mm2 L=0.5m (high voltage)

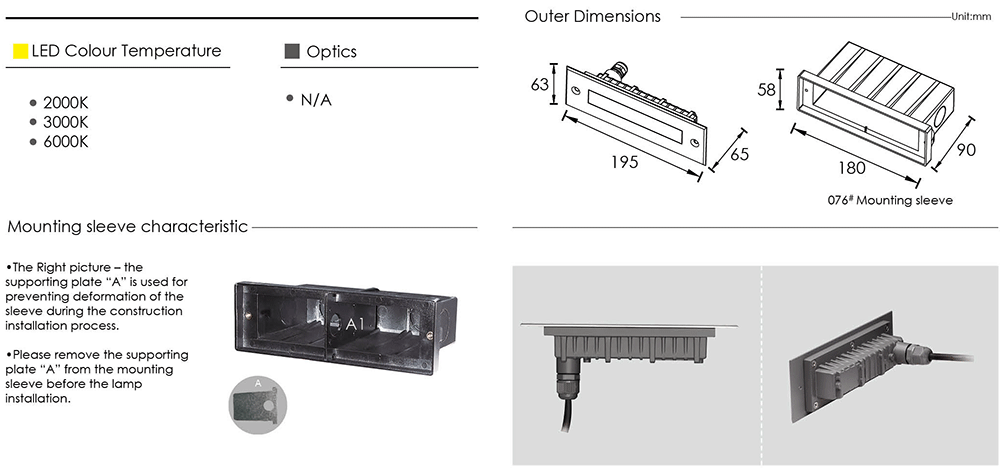

Mounting sleeve: ABS 076#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP65

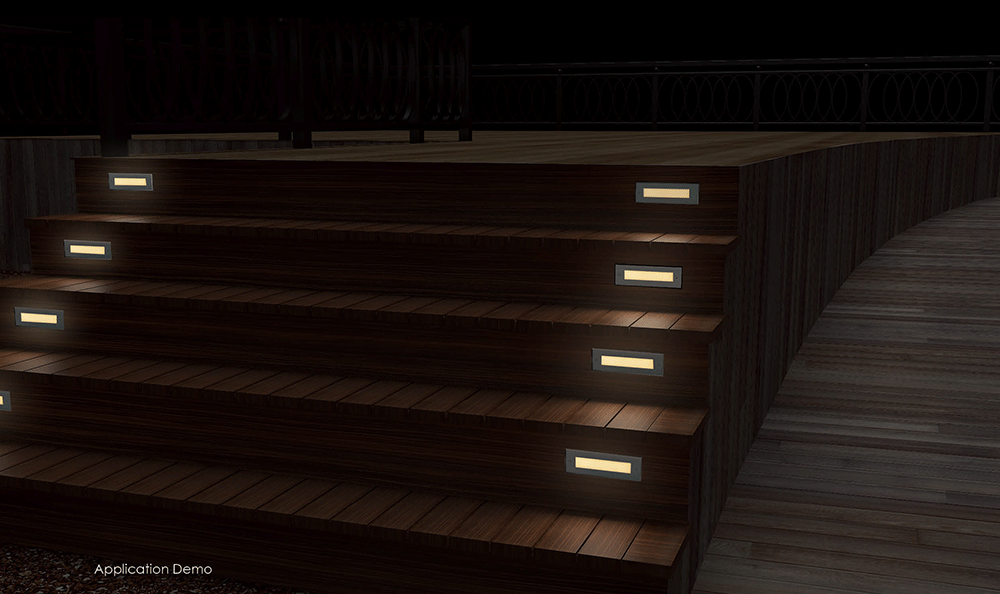

A range of vandal resistant recessed wall light IP65 LED X-LIGHT. Suitable for indoor or outdoor applications in residential, shopping mall and pedestrian areas as decorative guide light, illuminate walkways, corridors, stairs, step light, car ramp wall recessed, car ramp steplight, ...

Specifications:

Item	RWLD1FL1014
Light source	10 x SMD3030
Lens	N/A

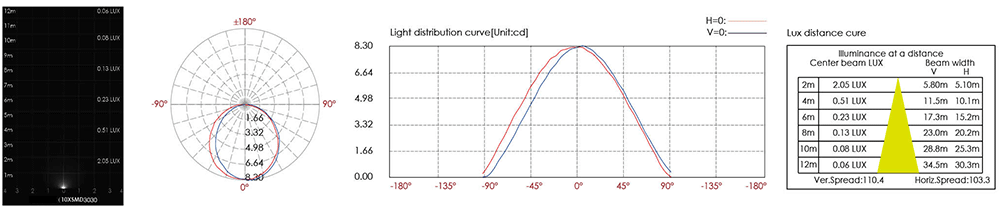

The manufacturer selected lens degree (º) ϴ1/2	120º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 114 120V = 55 240V = 32
Typical consumption (W)	24V = 2.7 120V = 3.5 240V = 3.6
Typical luminance (lm)	Cool white = 34 Warm white = 35
IP rate	IP65
IK rate	09
