Đèn led âm tường, đèn âm tường, led recessed wall light, Recessed stair & wall light, step light, đèn chân tường, đèn ram dốc

SKU: RWLC1FL0357

Recessed LED Stair light & Wall light RWLC1FL0357

Asymmetrical Recessed LED Stair light & Wall light - RWLC1FL0357

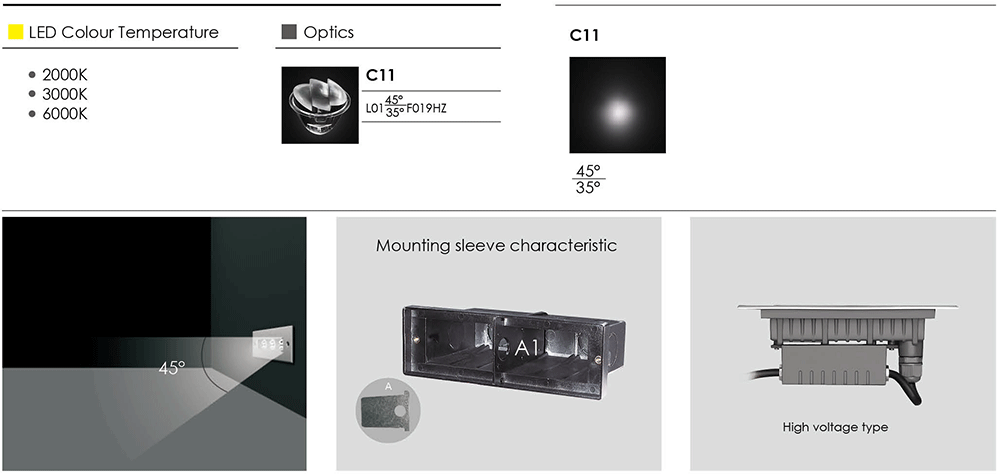

Color temperature:

2000K
3000K
6000K

Housing: 12# Die-casting grey powder coated aluminum.
T=60-80um Adhesion of ISO class 1/ASTM class 4B
Light Window: Step tempered glass. T=8mm
Cable gland: IP68 PG-9 PA66
Gasket: Tooling shaped seal
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=0.5m (low voltage)
H05RN-F 3X1.0mm2 L=0.5m (high voltage)

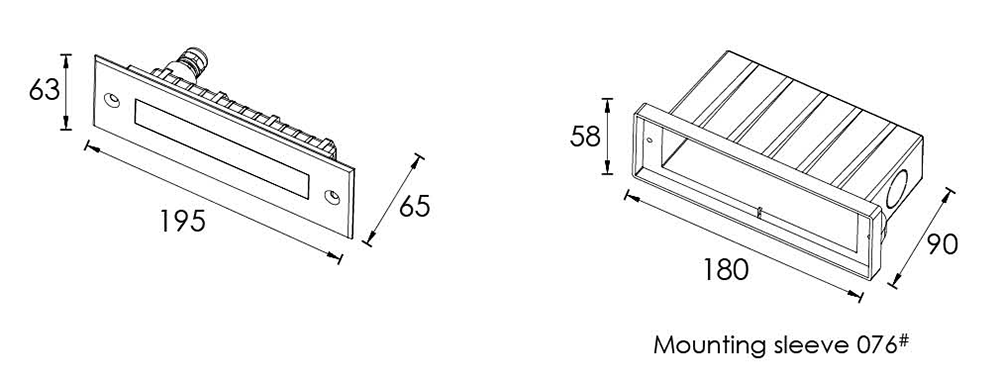

Mounting sleeve: ABS 076#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP65

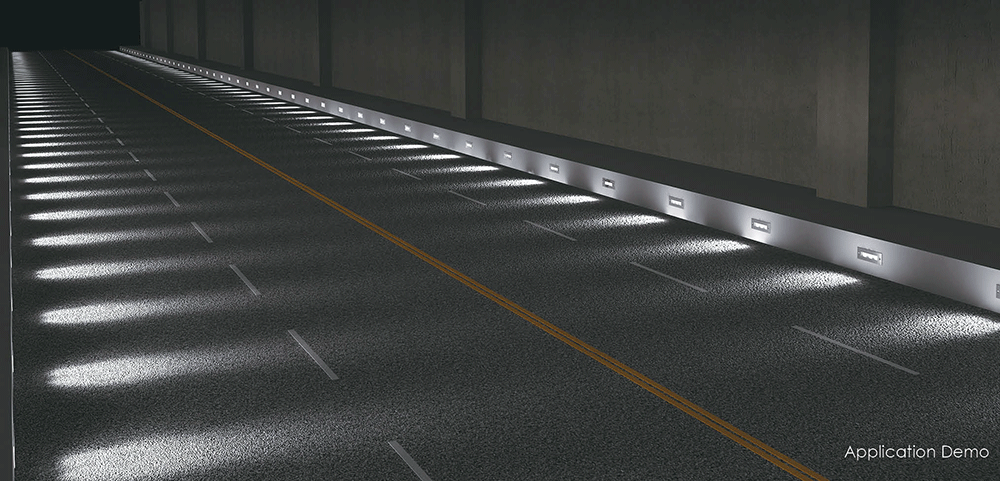

A range of vandal resistant recessed wall light IP65 LED X-LIGHT. Suitable for indoor or outdoor applications in residential, shopping mall and pedestrian areas as decorative guide light, illuminate walkways, corridors, stairs, step light, car ramp wall recessed, car ramp steplight, ...

Specifications:

Item	RWLC1FL0357
Light source	3 x 2W OSRAM
Lens	C11

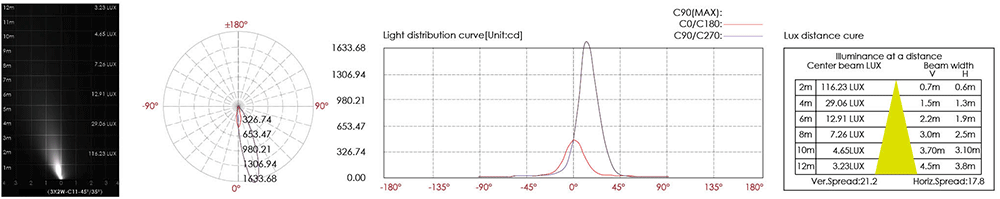

The manufacturer selected lens degree (º) ϴ1/2	45º 35º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 200 120V = 89 240V = 46
Typical consumption (W)	24V = 5.7 120V = 6.2 240V = 5.7
Typical luminance (lm)	Cool white = 400 Warm white = 285
IP rate	IP65
IK rate	08
