Đèn led âm tường, đèn âm tường, led recessed wall light, đèn âm tường cao cấp nhập khẩu, Recessed stair & wall light

SKU: RWLB1XQ0156 - RWLB1XT0157 - RWLR1XU0125

Recessed LED Stair light & Wall light RWLB1XQ0156 - RWLB1XT0157 - RWLR1XU0125

Recessed LED Stair light & Wall light - RWLB1XQ0156 and RWLB1XT0157 and RWLR1XU0125
Color temperature:

2000K
3000K
6000K

Housing: 12# Die-casting grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Light Window: Step tempered clear glass T = 4mm
Loading capacity: > 2000kg
Cable gland: IP67 copper and nicked coated
Gasket: Molding shaped silicone seal
LED Driver: Constant Voltage Input, Constant Current Output
Operating temperature: -20˚C~40˚C
Power Cable: H05RN-F 2X1.0mm2 L=0.5m (low voltage)
H05RN-F 3X1.0mm2 L=0.5m (high voltage)

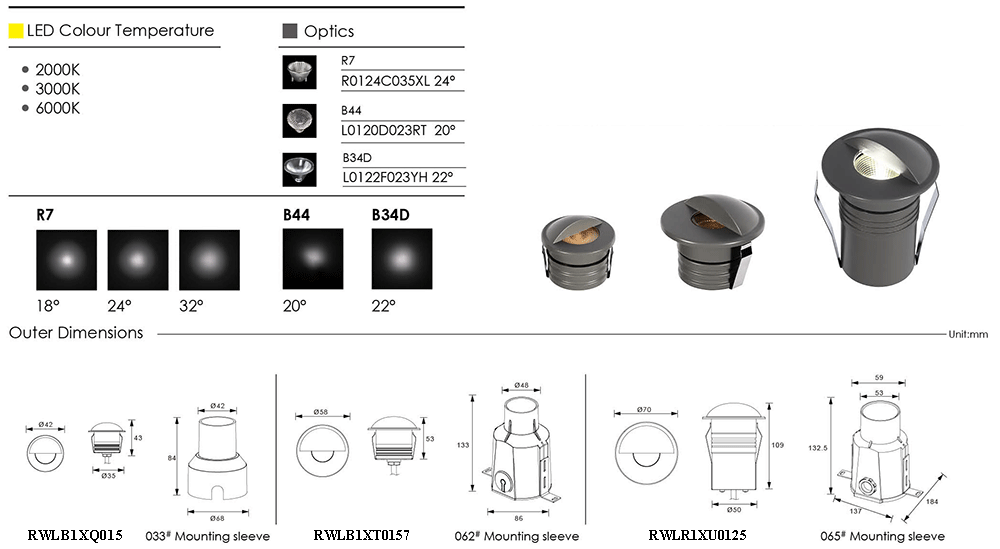

Mounting sleeve: ABS 033# 062# 065#
Dimmable Surpport: Triac, PWM, 1-10V, Dali
Certifications: RoHS, CE
IP rate: IP65

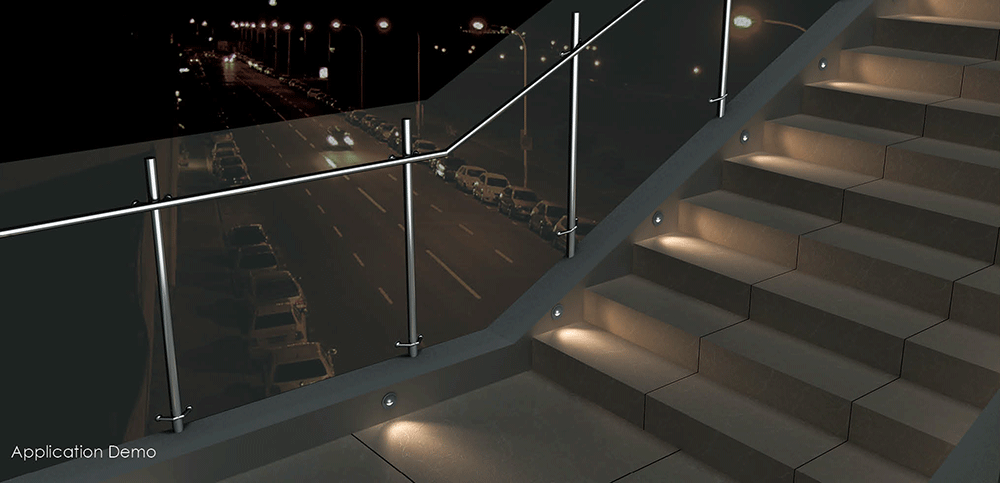

A range of vandal resistant recessed wall light IP65 LED X-LIGHT. Suitable for indoor or outdoor applications in residential, shopping mall and pedestrian areas as decorative guide light, illuminate walkways, corridors, stairs, step light, car ramp wall recessed, car ramp steplight, ...

Specifications:

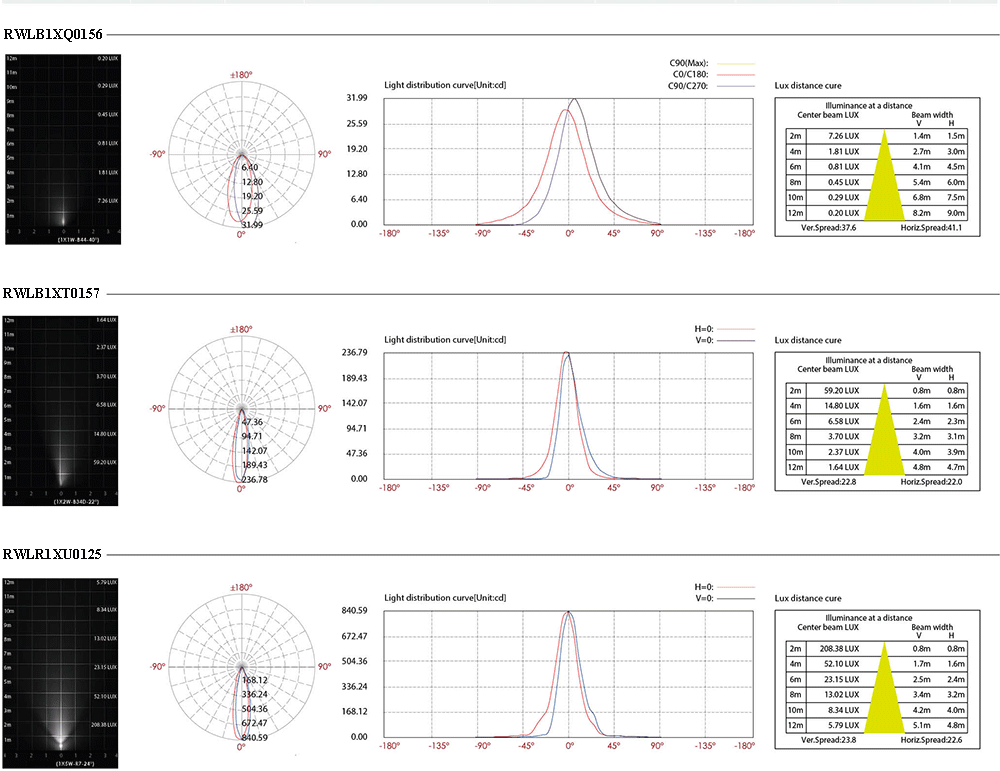

Item	RWLB1XQ0156	RWLB1XT0157	RWLR1XU0125
Light source	1 x 1W	1 x 2W	1 x 5W COB
Lens	B44	B34	R7
The manufacturer selected lens degree (º) ϴ1/2	20º	22º	18º, 24º, 32º
Input voltage (V)	24V DC	24V DC	24V DC 120/240
Typical operating current (mA)	54	108	12V = 265 120V = 52 240V = 32
Typical consumption (W)	1.3	2.6	24V = 6.3 120V = 6.0 240V = 6.0
Typical luminance (lm)	Cool white = 28 Warm white = 23	Cool white = 60 Warm white = 51	Cool white = 237 Warm white = 208
IP rate	IP65	IP65	IP65
IK rate	10	10	10
