High power LED linear wall washer WAWB6QB1057 - WAWB6QB2057 - WAWB6QC1057 - WAWB6QC2057
Color temperature:
2000K
3000K
6000K
Housing: Extruded aluminum, powder coated
Lens: Optical lens efficiency ≥ 85%
Light window: Tempered glass T=3mm
LED: OSRAM SMD3535
Cable gland: IP68 PG-13.5 PA66
Gasket: Glass and housing are silicone sealed
Bracket: 12# Die-casting powder coated aluminum
Operating temperature: -20˚C~40˚C
Power Cable: H07RN-F 2X1.5mm2 L= 0.25m (low voltage)
H07RN-F 3X1.0mm2 L= 0.5m (high voltage)
Dimmable support: Triac, PWM, 1-10V, Dali (WAWB6QB1057 / WAWB6QB2057)
Certifications: CE, RoHS
IP rate: IP66

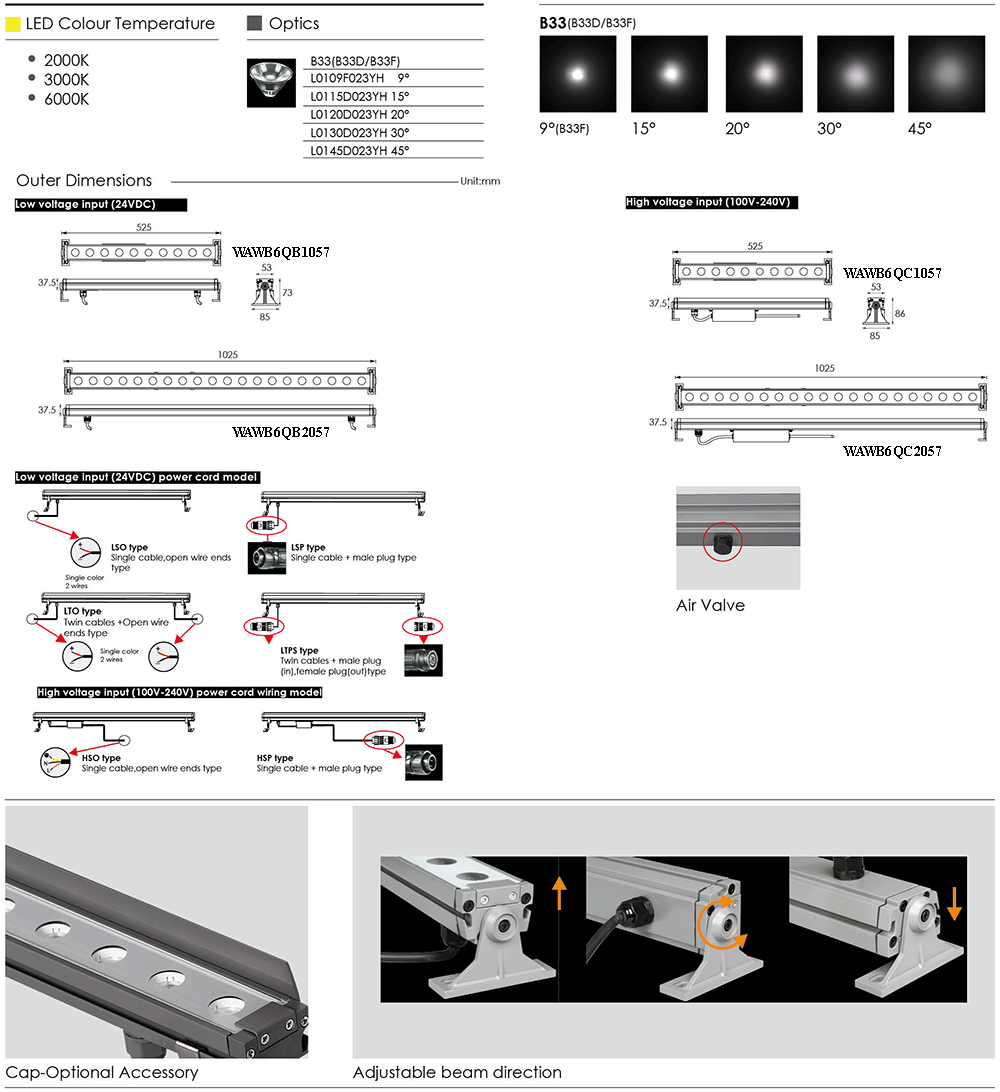

Beam angle: 9º, 15º, 20º, 30º, 45º
