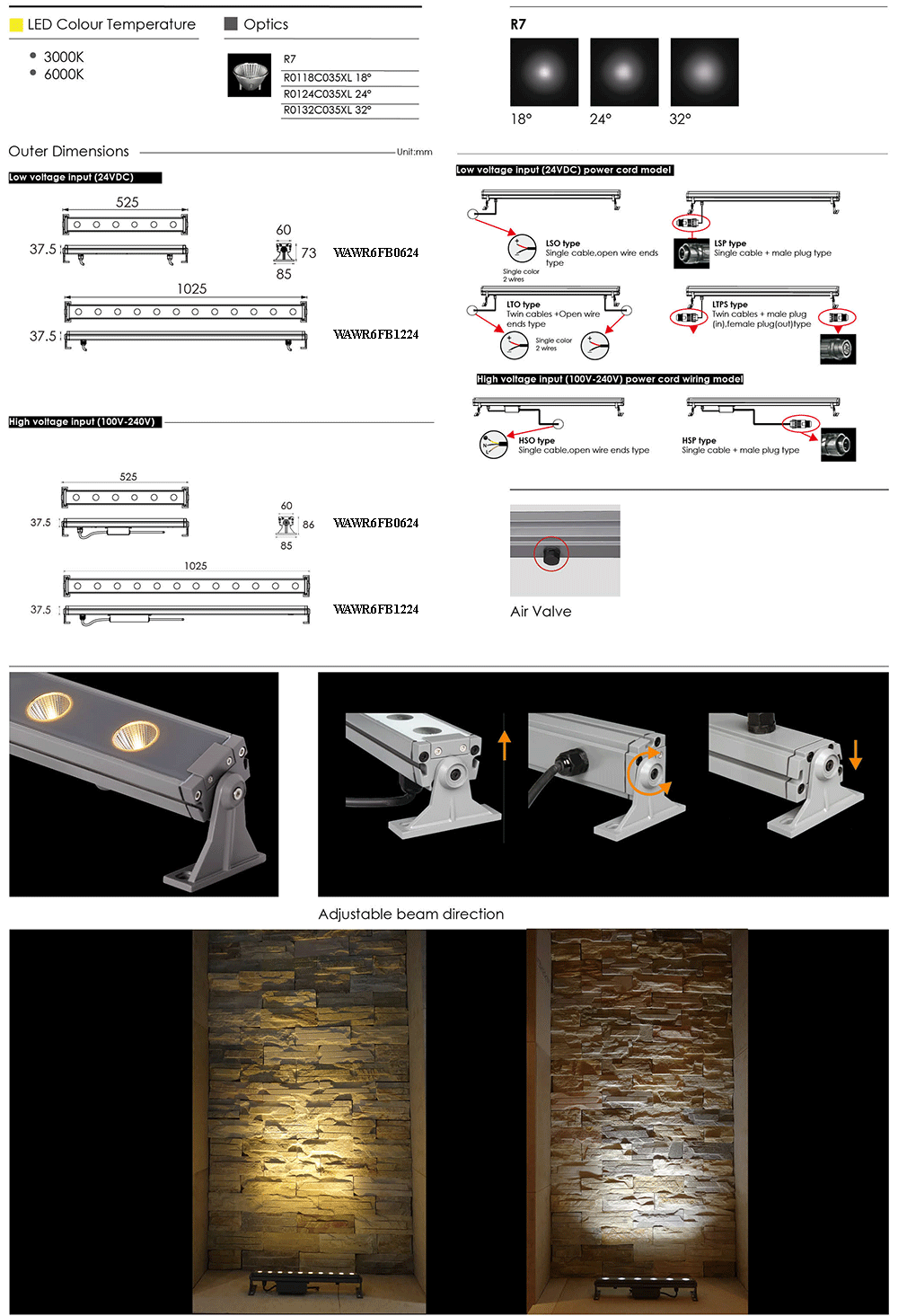

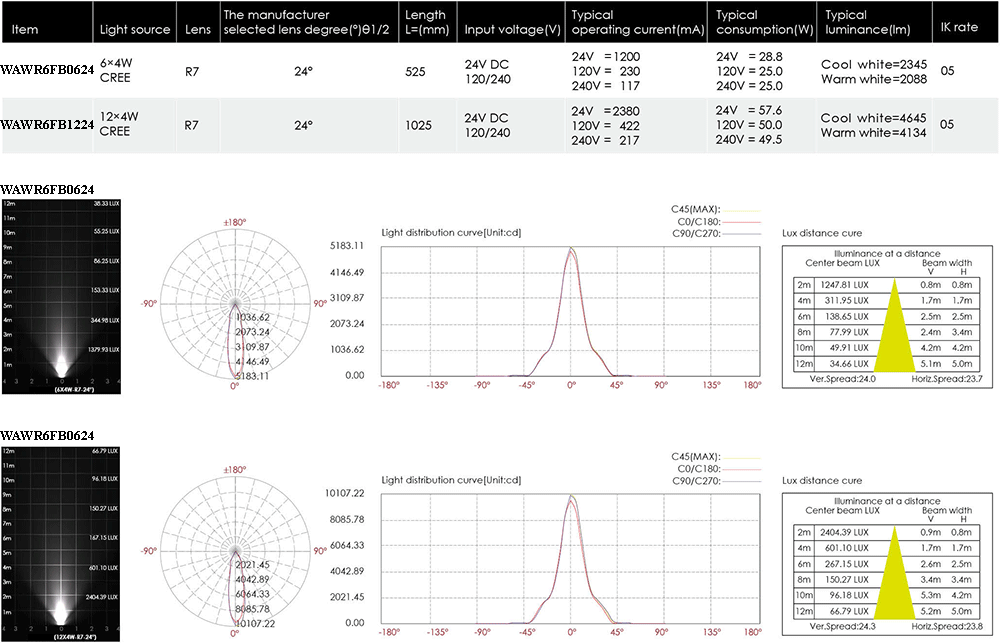

High luminance COB LED linear wall washer WAWR6FB0624 - WAWR6FB1224
Color temperature:
3000K
6000K
Housing: Extruded aluminum, powder coated
Reflector: Optical reflector efficiency ≥ 85%
Light window: Step tempered glass T=3mm
LED: CREE
Cable gland: IP68 PG-13.5 PA66
Gasket: IP68 plug male/female (option)
Bracket: 12# Die-casting powder coated aluminum
Operating temperature: -20˚C~40˚C
Power Cable: Input: waterproof plug connector
Output: waterproof socket connector
2xH05RN-F 2X1.5mm2 L= 0.3m (low voltage)
2xH05RN-F 3X1.0mm2 L= 1.0m (high voltage)
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP66
Beam angle: 18º, 24º, 32º
