SKU: SPLC3PFM1257 U

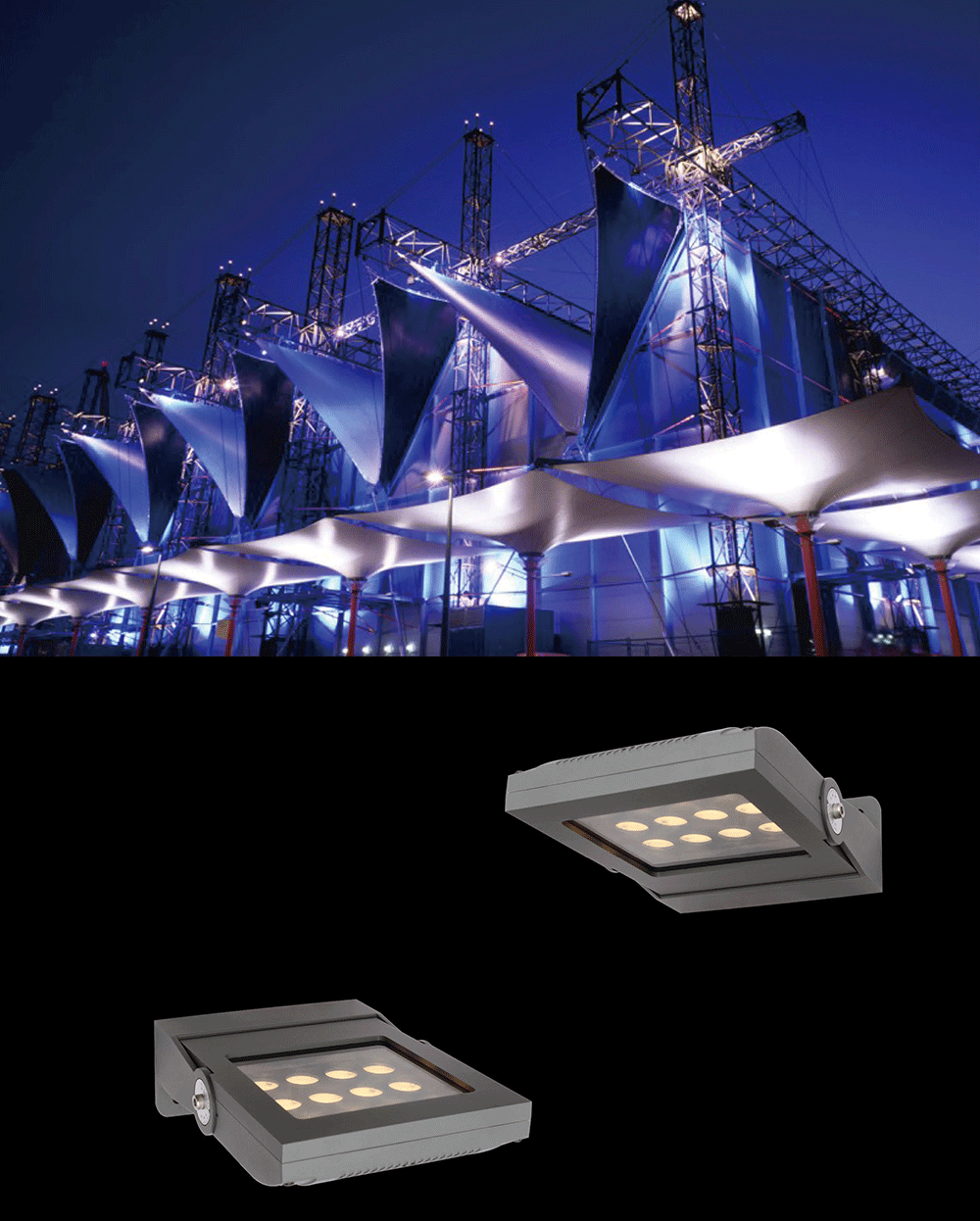

Asymmetrical Wall mounting wall washer SPLC3PFM1257 U

Asymmetrical Wall mounting wall washer SPLC3PFM1257 U

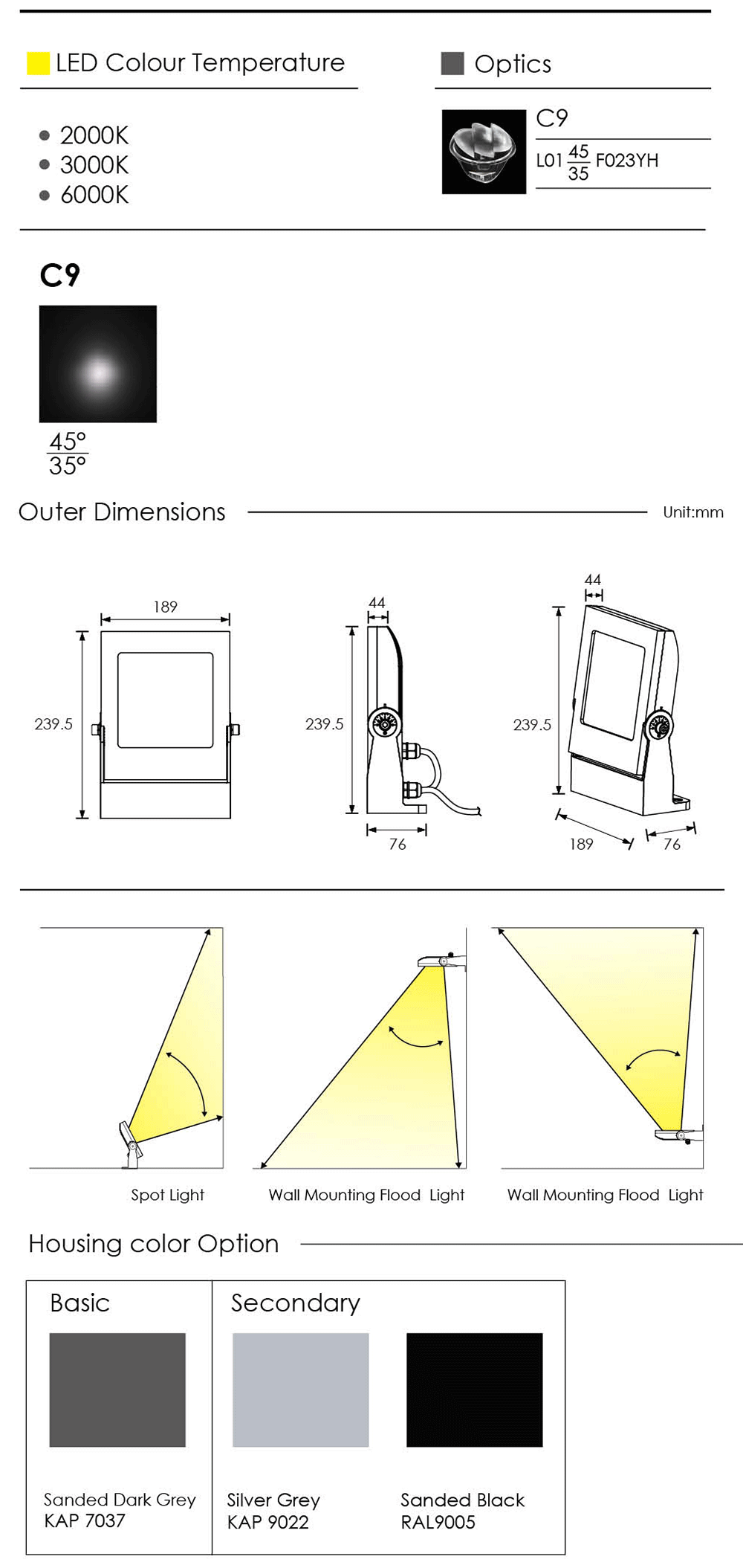

Color temperature:
   2000K
   3000K
   6000K
Housing: 12# Die-casting powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Light window: Tempered glass.T=4mm
LED: OSRAM or NICHIA
Cable gland: IP68 PG-9 PA66
Gasket: Tooling shaped seal
Reflector: Optical reflector efficiency ≥ 90%
Power Cable: 24V:         H05RN-F 2X1.0mm2 L=2M (Single)
                      120/240V: H05RN-F 3X1.0mm2 L=2M (Single)
Operating temperature: -20˚C~40˚C
Bracket: Powder coated aluminum
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP66

Specifications:

Item	SPLC3PFM1257U
Light source	12 x 1.5W
Lens	C9

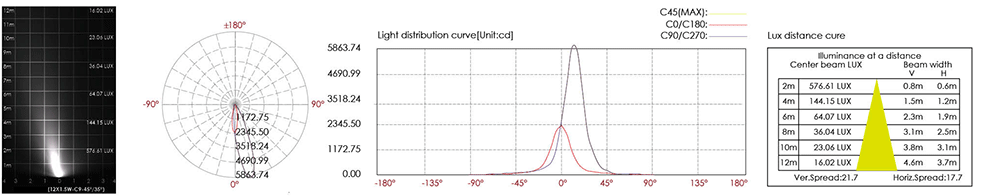

The manufacturer selected lens degree (º) ϴ1/2	45º 35º
Input voltage (V)	24V DC 120/240
Typical operating current (mA)	24V = 1050 120V = 143 240V = 79
Typical consumption (W)	24V = 25 120V = 18 240V = 18
Typical luminance (lm)	Cool white = 1355 Warm white = 1206
IP rate	IP66
IK rate	08
