Đèn led âm sàn gỗ Ip67, đèn âm sàn gỗ không đối xứng, asymmetrical recessed wooden floor light

SKU: IGLFC2XBR0357 - IGLFC2XBS0357

Asymmetrical recessed wooden floor light IGLFC2XBR0357 - IGLFC2XBS0357

Asymmetrical recessed wooden floor light IGLFC2XBR0357 - IGLFC2XBS0357

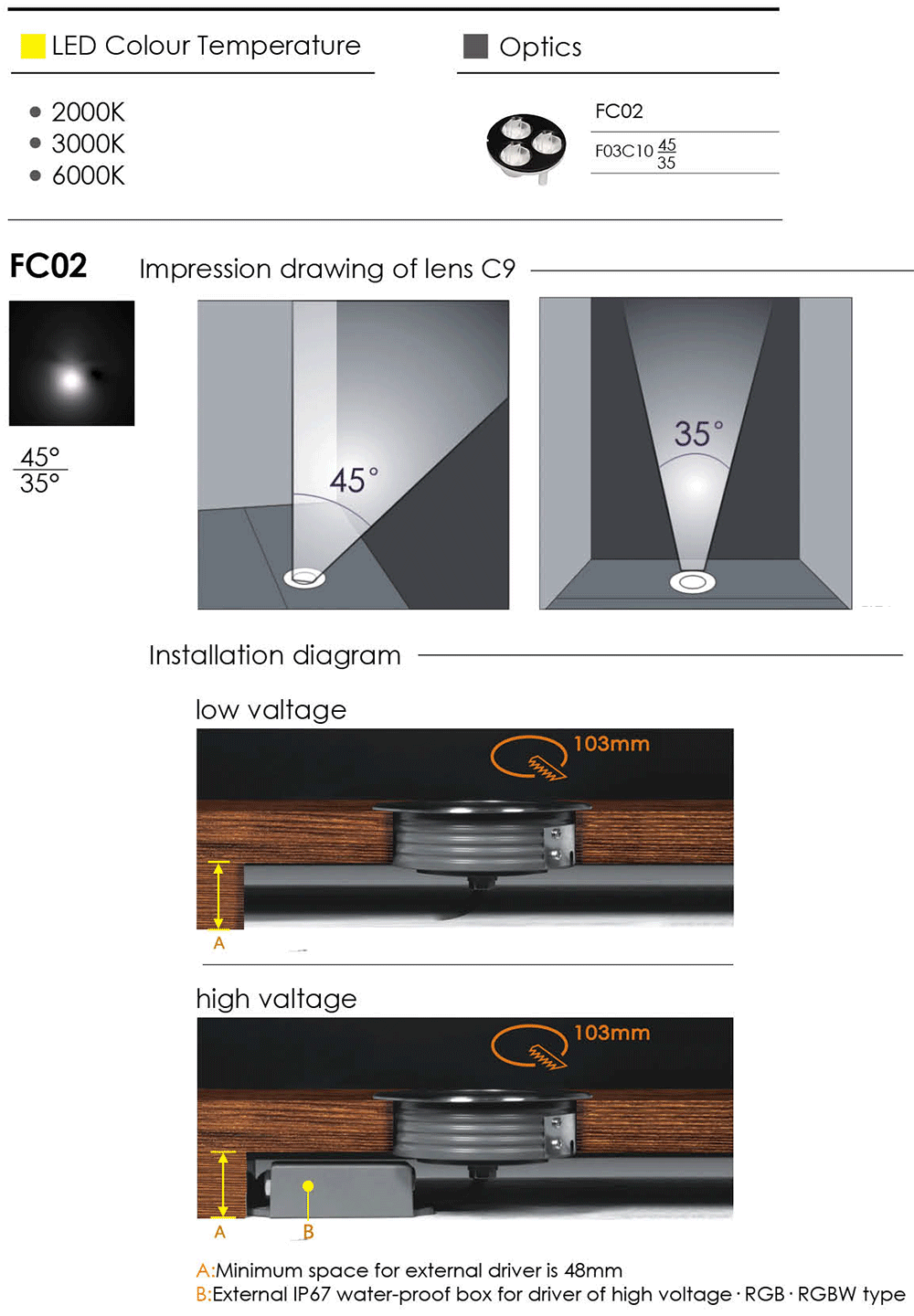

Color temperature:
    2000K
    3000K
    6000K
Housing: 12# Die-casting dark grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Front ring: Hard chromeplated stainless steel SUS 316L#
Light window: Tempered froshed step glass T = 8mm
LED: OSRAM
Glass pressure capacity: Full area = 3370kgs
Operating temperature: -20˚C ~ 40˚C
Power Cable: H05RN-F 2X 1.0mm2 L=0.5m (low voltage)
                       H05RN-F 3X 1.0mm2 L=0.5m (high voltage)
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP67

Specifications:

Item	IGLFC2XBR0357	IGLFC2XBS0357
Light source	3 x 2W Single color	3 x 2W Single color
Lens	FC02	FC02

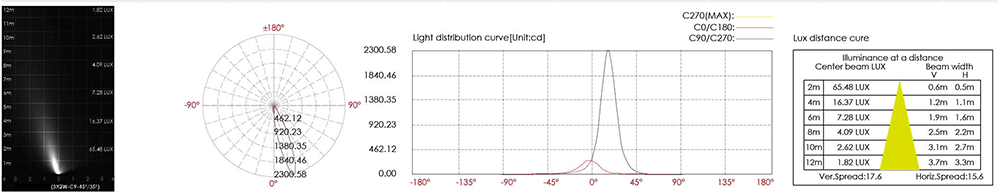

The manufacturer selected lens degree (º) ϴ1/2	45º 35º	45º 35º
Input voltage (V)	24V DC 120/240	24V DC 120/240
Typical operating current (mA)	24V = 220 120V = 89 240V = 46	24V = 220 120V = 89 240V = 46
Typical consumption (W)	24V = 5.3 120V = 6.2 240V = 5.7	24V = 5.3 120V = 6.2 240V = 5.7
Typical luminance (lm)	Cool white = 327 Warm white = 287	Cool white = 327 Warm white = 287
IP rate	IP67	IP67
IK rate	08	08
