Đèn rọi kiến trúc và cảnh quan, đèn chiếu kiến trúc và đèn chiếu cảnh quan, architectural and landscape spot light, đèn kiến trúc

SKU: SPLB3BJM1258-SPLB3CJM0658-SPLB3DJM0360-SPLA3EJM035

Architectural and Landscape Spot light SPLB3BJM1258 - SPLB3CJM0658 - SPLB3DJM0360 - SPLA3EJM0357

Architectural and Landscape Spot light SPLB3BJM1258 - SPLB3CJM0658 - SPLB3DJM0360 - SPLA3EJM0357

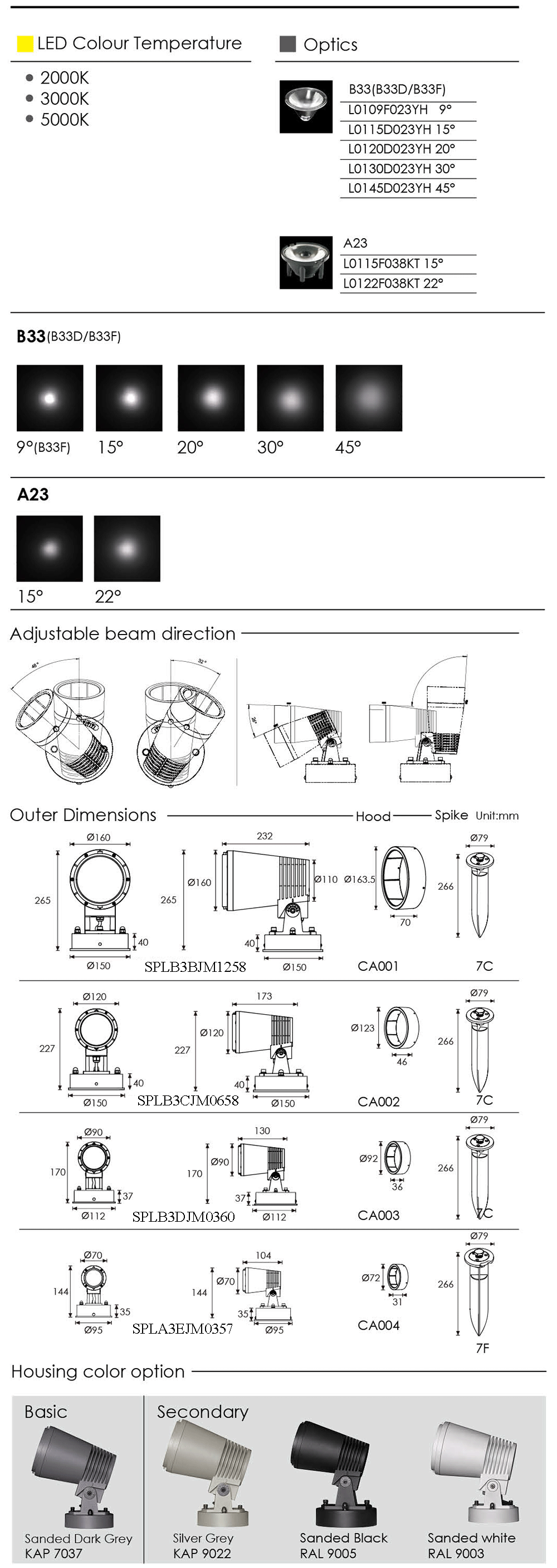

Color temperature:
   2000K
   3000K
   5000K
Housing: 12# Die-casting dark grey powder coated aluminum T=60-80um. Adhesion of ISO class 1/ASTM class 4B
Light window: Tempered glass.T=3mm
LED: OSRAM or NICHIA
Cable gland: IP68 PG-9 PA66
Gasket: Tooling shaped seal
LED Driver: Constant voltage input, Constant current output
Power Cable: H05RN-F 2X1.0mm2 L=0.3m (low voltage)
                      H05RN-F 3X1.0mm2 L=0.3m (high voltage)
Operating temperature: -20˚C~40˚C
Dimmable support: Triac, PWM, 1-10V, Dali
Certifications: CE, RoHS
IP rate: IP66

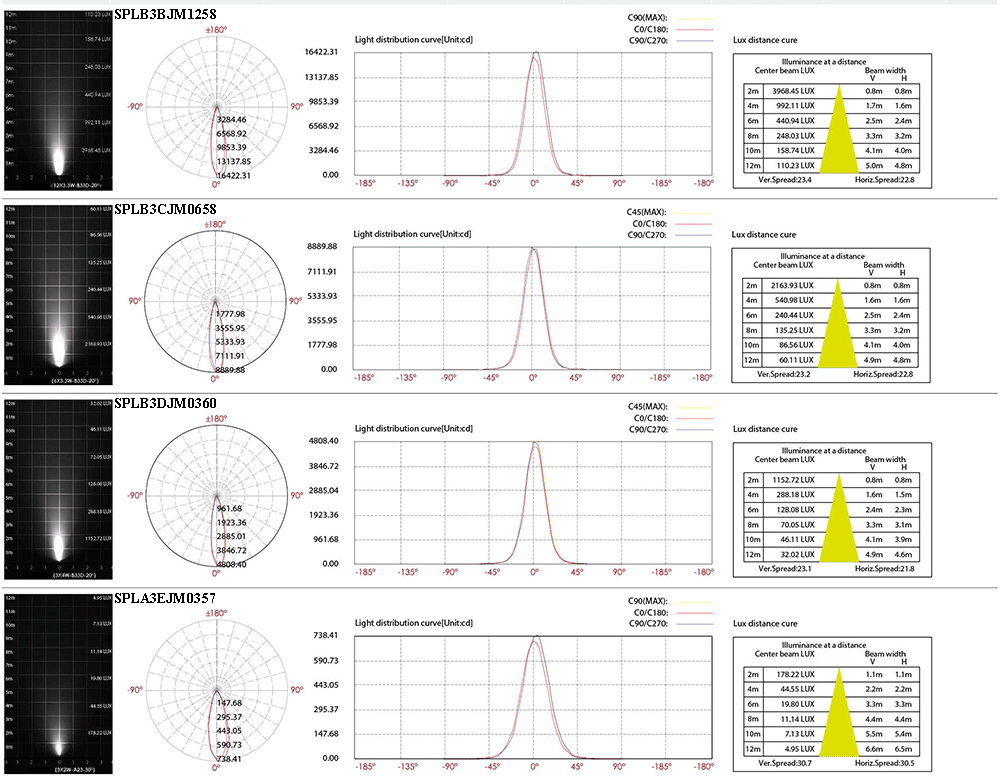

Specifications:

Item	SPLB3BJM1258	SPLB3CJM0658	SPLB3DJM0360	SPLA3EJM0357
Light source	12 x 3.3W	6 x 3.3W	3 x 4W	3 x 2W
Lens	B33	B33	B33	A23
The manufacturer selected lens degree (º) ϴ1/2	9º, 15º, 20º, 30º, 45º	9º, 15º, 20º, 30º, 45º	9º, 15º, 20º, 30º, 45º	15º, 22º
Input voltage (V)	120/240V	120/240V	120/240V	24V DC 120/240V
Typical operating current (mA)	120V = 366 240V = 186	120V = 196 240V = 101	120V = 118 240V = 65	24V = 300 120V = 110 240V = 65
Typical consumption (W)	120V = 44.2 240V = 44.0	120V = 23.1 240V = 23.3	120V = 14.5 240V = 15.1	24V = 7.2 120V = 8.3 240V = 8.5
Typical luminance (lm)	Cool white = 4035 Warm white = 3431	Cool white = 2017 Warm white = 1855	Cool white = 1230 Warm white = 1018	Cool white = 298 Warm white = 263
IP rate	IP66	IP66	IP66	IP66
IK rate	06	06	06	05
